Sewer Nozzles

0.5 Root Cutter Nozzle

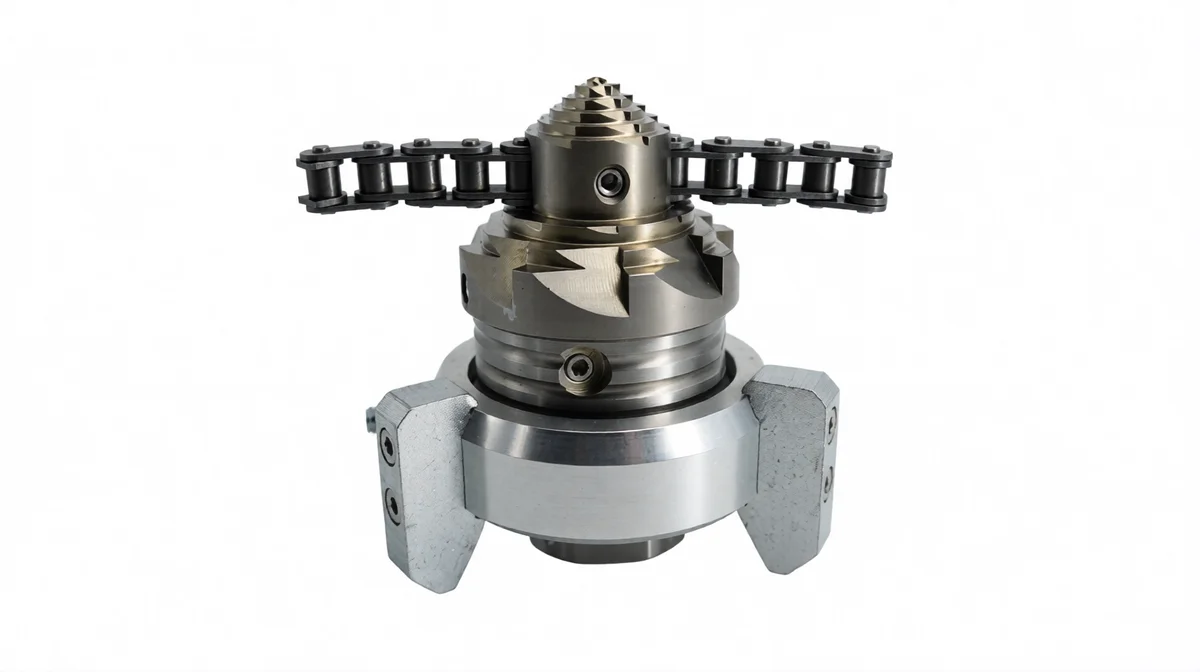

0.5 Root Cutting Kit is a heavy-duty hardened stainless steel pipeline root cutting nozzle assembly with side and rear jets, designed to cut tree roots and tough blockages inside pipes.

0.5 Root Cutting Kit complete set with durable blades and storage case for laboratory or field use.

Product Variants & Specifications

Specific flow and pressure can be adjusted according to actual requirements

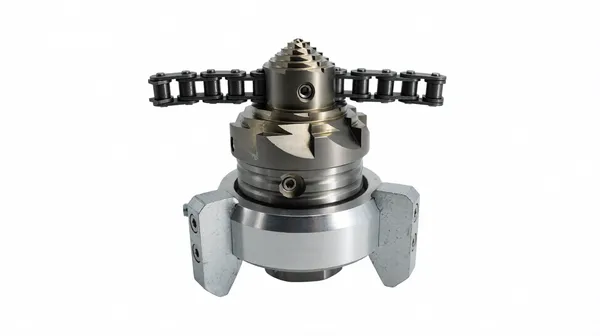

0.5 Root Cutter Nozzle 0.5K-DSGTZ Specifications

0.5K-DSGTZ Specifications

Pressure(Bar)Customized
Flow(LPM)Customized
Hose Connection (Inch)1/2"
Rear Jets6 x M6
Side Jets3 x M6
Dimension(mm)Φ36 x 68

Key Features

What makes this product special

Hardened stainless steel
modular root cutting assembly
3 x M6 side jets
6 x M6 rear jets
rotary chain cutting structure
1/2" female thread
replaceable cutter & chains
customized flow and pressure

Applications

Ideal for various cleaning scenarios

Tree roots
hard sediment
mineral deposits
tangled debris in sewer and drain pipelines

Product Gallery

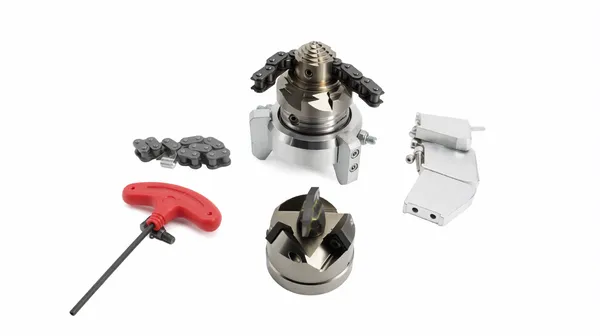

Front view of the 0.5 Root Cutting Kit packaging showing product name and specifications clearly.

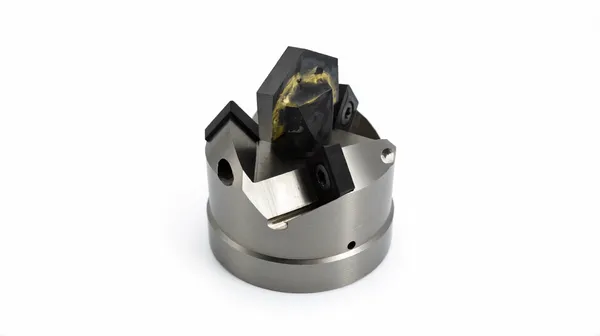

Close-up of precision cutting blades included in the industrial root cutting equipment kit.
All components of the 0.5 Root Cutting Kit laid out including handles, bases, and safety gear.
Field technician using the 0.5 Root Cutting Kit to prepare soil root samples for analysis.
Detailed view of the ergonomic handle design on the root cutting tool within the kit.
Storage pouch and protective casing included with the 0.5 Root Cutting Kit set.
Instruction manual and safety guidelines provided inside the 0.5 Root Cutting Kit box.

About This Product

✅ Heavy Hardened Stainless Steel Build
Precision-machined from wear-resistant hardened stainless steel, this root cutting kit features high impact resistance for long service life under rigorous high-pressure pipe clearing operations.

✅ Powerful Cutting & Jet Layout
Equipped with 3 x M6 side jets + 6 x M6 rear jets. Side jets deliver rotational power to spin the cutting assembly; rear jets create forward pulling thrust to feed the cutter through the pipeline. The built-in chain cutting mechanism grinds away entangled tree roots and stubborn obstructions.

✅ Modular & Replaceable Design

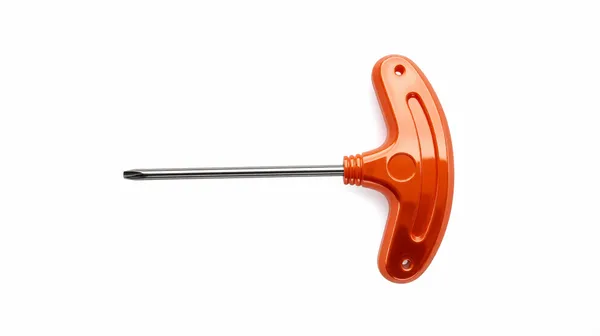

Modular assembly with interchangeable cutting chains and cutter heads. Quick disassembly for inspection, replacement of worn chains or inserts, reducing maintenance cost and downtime. Comes with matching installation tool for easy on-site assembly.

✅ 1/2" Female Thread & Custom Parameters
Standard 1/2" female thread fits most heavy-duty sewer jetter hoses. Flow rate and working pressure can be customized to match your jetting machine and different pipe sizes.
