Bullet Mini Nozzle
Bullet Mini Nozzle is compact sewer jetting nozzle made of stainless/hardened stainless steel, available with optional forward penetrating jet and multiple rear jets for small pipeline cleaning.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Dimension(mm) | Front Jets |
|---|---|---|---|---|---|---|
 YXLJ0.125-1 | Customized | Customized | 1/8" | 6 | Φ18 x 22.6 | - |
 YXLJ0.125-2 | Customized | Customized | 1/8" | 6 | Φ18 x 22.6 | 1 |
 YXLJ0.25-1 | Customized | Customized | 1/4" | 6 | Φ22 x 27.3 | - |
 YXLJ0.25-2 | Customized | Customized | 1/4" | - | Φ22 x 27.3 | 16 |
 YXLJ0.375-1 | Customized | Customized | 3/8" | 6 | Φ27.5 x 27 | - |
 YXLJ0.375-2 | Customized | Customized | 3/8" | 6 | Φ27.5 x 27 | 1 |
 YXLJ0.5-1 | Customized | Customized | 1/2" | 6 | Φ33 x 32 | - |
 YXLJ0.5-2 | Customized | Customized | 1/2" | 6 | Φ33 x 32 | 1 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios
Product Gallery
About This Product

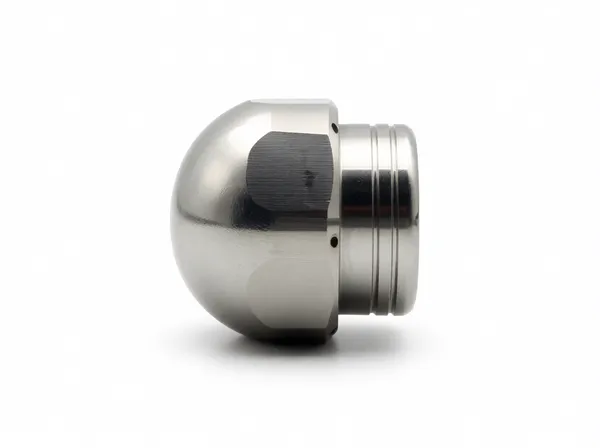

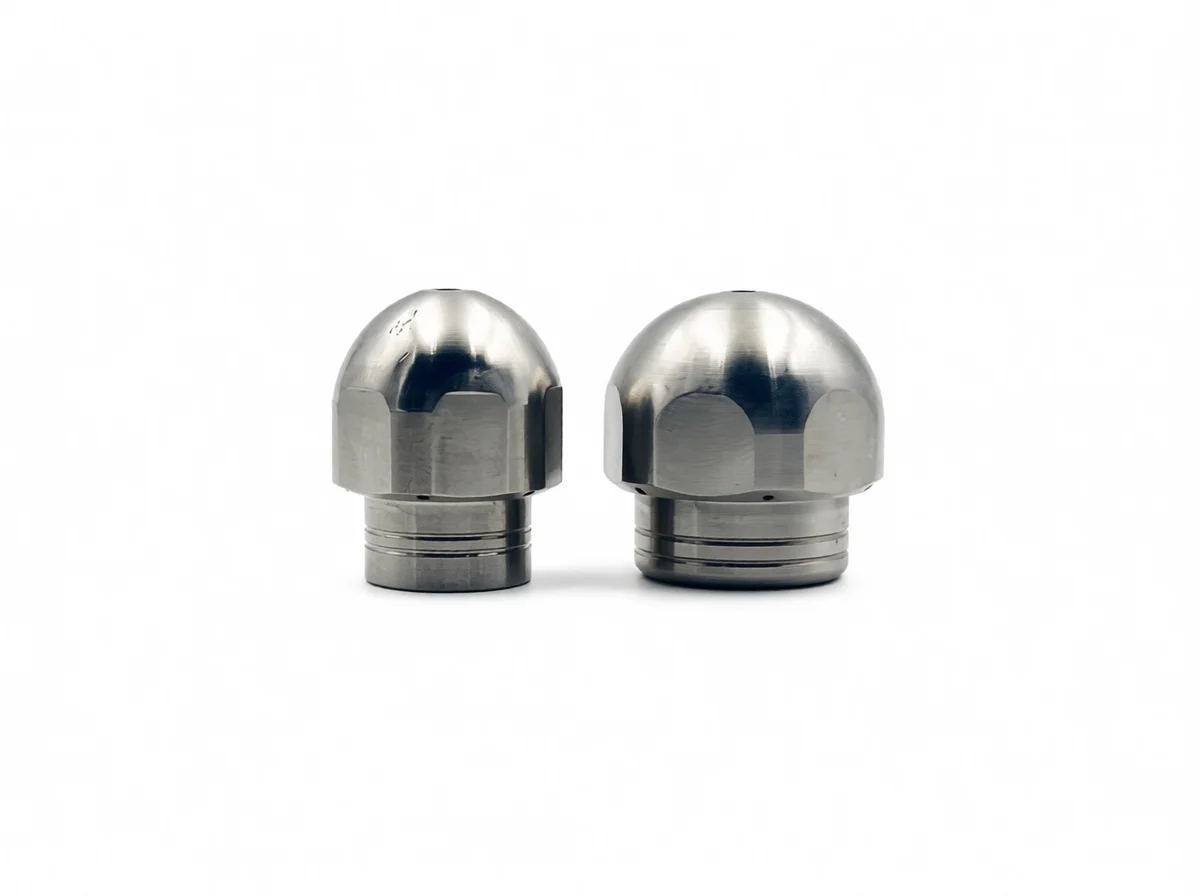

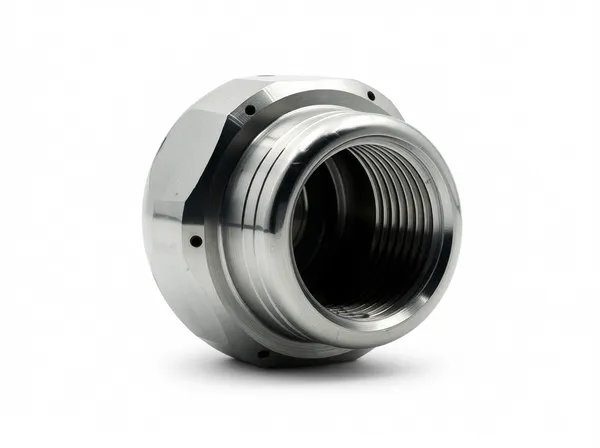

Bullet Mini Nozzle features small bullet-style compact structure. It is manufactured from stainless steel or wear-resistant hardened stainless steel. Two types for each thread size for selection: version without forward jet and version with 1 front penetrating jet. Equipped with 6 rear jets to provide propulsion inside pipes. Thread options include 1/8", 1/4", 3/8", 1/2" female thread. Flow and pressure can be customized according to project requirements, widely used for cleaning narrow and small-diameter pipelines.
Interested in Bullet Mini Nozzle?
Contact our team for more information, technical specifications, and pricing
