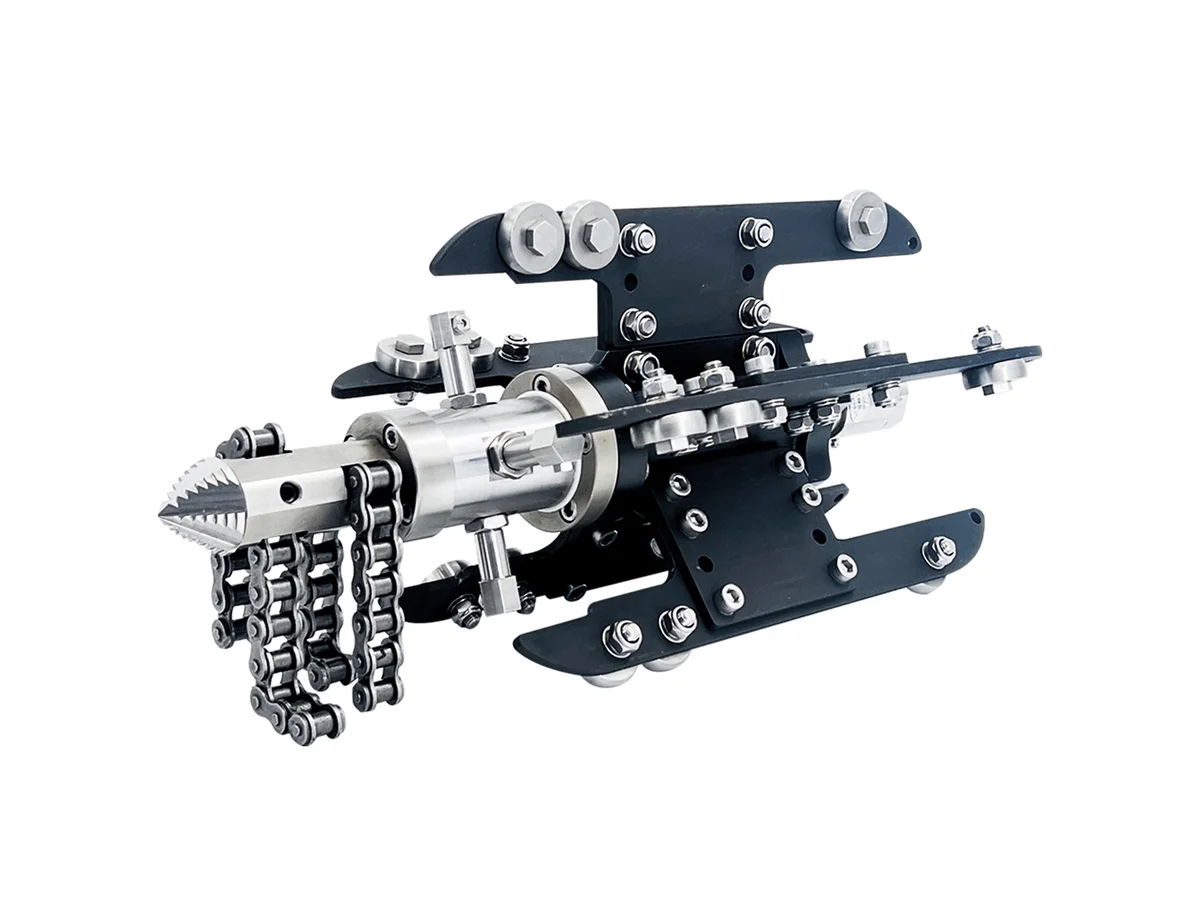

Chain Cutter Nozzle
Chain Cutter Nozzle is a heavy-duty high-pressure sewer cleaning nozzle made of wear-resistant hardened stainless steel, equipped with interchangeable chain kits for different pipe diameters to cut and remove roots, ice, limestone and concrete inside pipelines, used together with high-pressure swivel.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Rotating Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|---|
 JP17 | 200 | 137 | 215 | 1" | 10 x M10x1 -15°+20° | 4 x M10X1 - 90° | 192 x 502 | 17 |
JP19 | 250 | 137 | 250 | 1" | 10 x M10x1 - 15°+20° | 4 x M10X1 - 90° | 242 x 502 | 19 |
JP25 | 300-800 | 137 | 270 | 1" | 10 x M10x1 - 15°+20° | 4 x M10X1 - 90° | 283 x 569 | 25 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

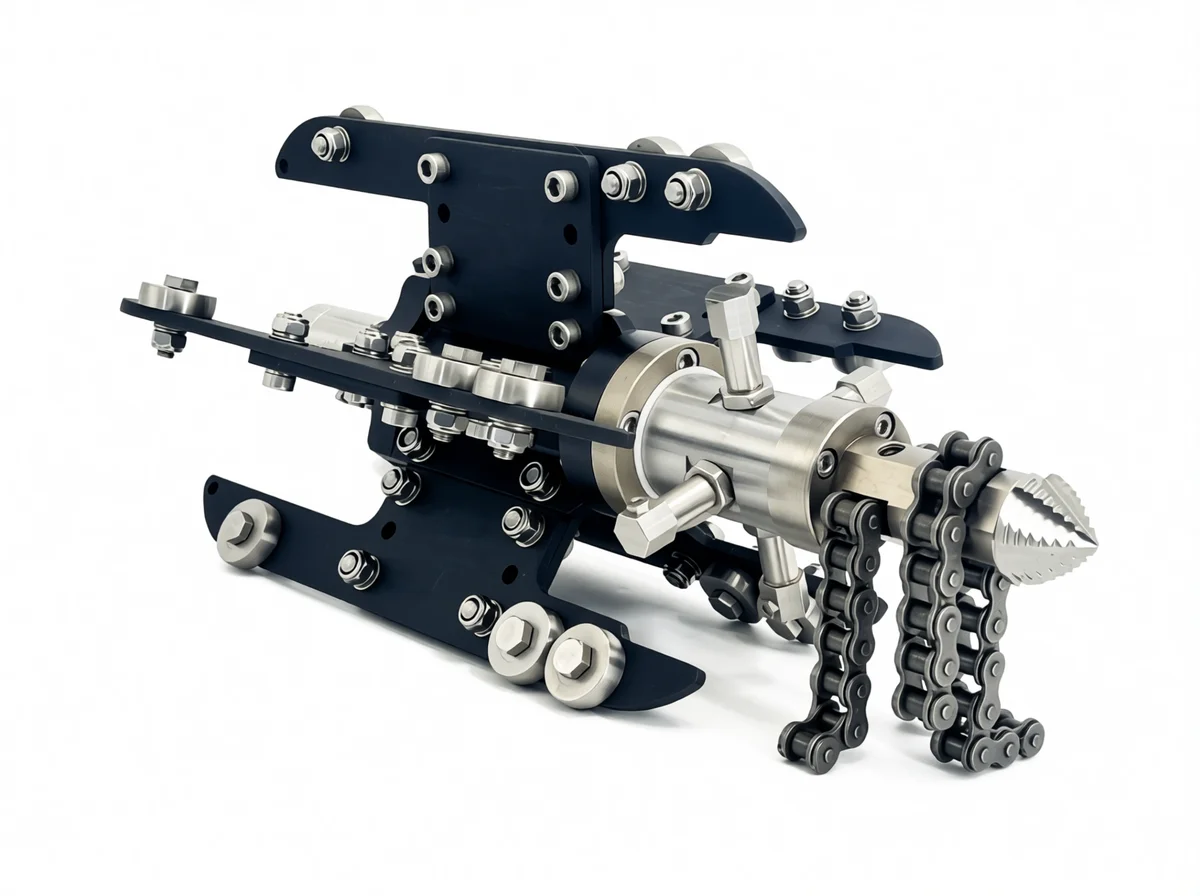

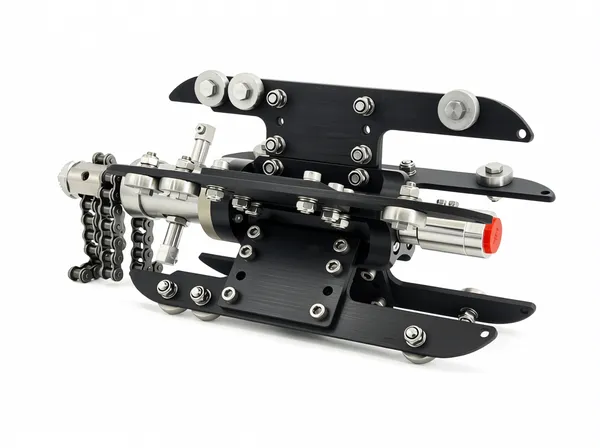

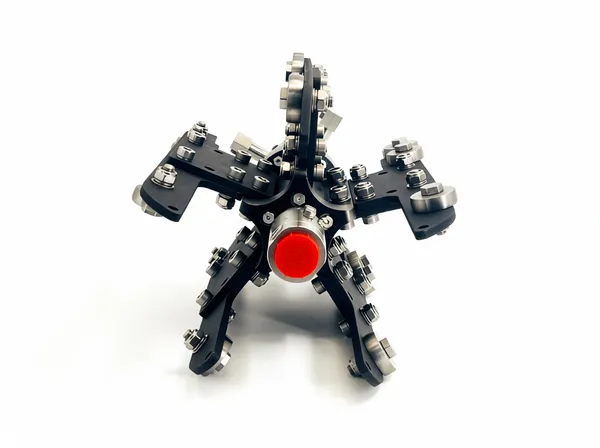

Product Gallery
About This Product
Constructed from wear-resistant hardened stainless steel, the Chain Cutter Nozzle requires selecting matched kits and chains according to different pipe sizes before operation and must work with a high-pressure swivel. The standard setup works for DN300/350/400 pipes, while extension kits expand its working range up to DN800. It features replaceable ceramic inserts. This nozzle is designed to clear roots, ice, limestone, concrete and similar hard blockages in pipelines. It comes with NPT or BSPP thread connection, maximum working pressure up to 172Bar, custom flow and pressure options available upon request.
Interested in Chain Cutter Nozzle?
Contact our team for more information, technical specifications, and pricing
