Sewer Nozzles

Crossbow Nozzle

Crossbow Nozzle is a heavy-duty high-pressure sewer cleaning nozzle made of hardened stainless steel, equipped with high-strength chains to deliver powerful cutting force for clearing roots, concrete and hard mineral deposits inside pipelines.

Front view Crossbow Nozzle BN3.3 industrial flow control device featuring durable metal construction and precision engin

Product Variants & Specifications

Specific flow and pressure can be adjusted according to actual requirements

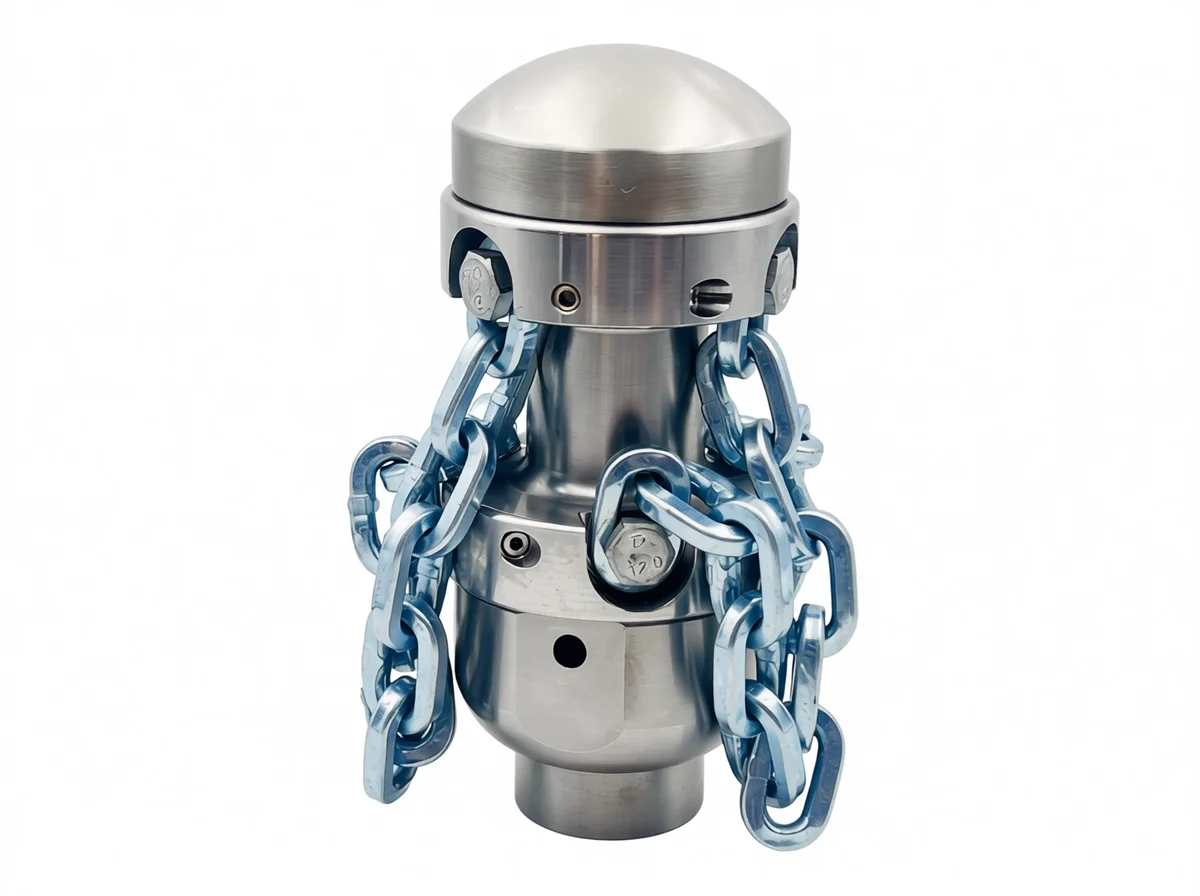

Crossbow Nozzle BN3.3 model featuring industrial grade materials optimized for high-pressure fire suppression fluid deli

BN3.3 Specifications

Working DN (mm)225-600
Pressure(Bar)250
Flow(LPM)170
Hose Connection (Inch)1"
Rear Jets4 x M6 - 15°
Rotating Jets6 x M6 - 90°
Dimension(mm)74 x 164.5
Weight(KG）225-600

Key Features

What makes this product special

Wear‑resistant hardened stainless steel body
high-strength chains for powerful cutting force

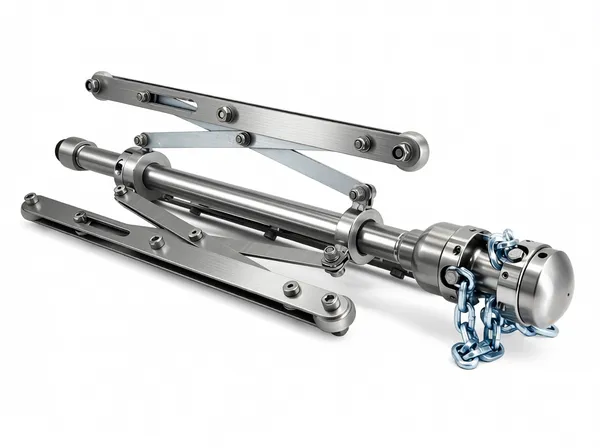

interchangeable chains & extension kit for various pipe sizes
sold in sets or separately
replaceable ceramic inserts for longer service life
NPT / BSPP thread options
max 250Bar working pressure
custom flow & pressure available

Applications

Ideal for various cleaning scenarios

Remove roots
ice
limestone
concrete
mineral deposits and other stubborn blockages in pipelines.

Product Gallery

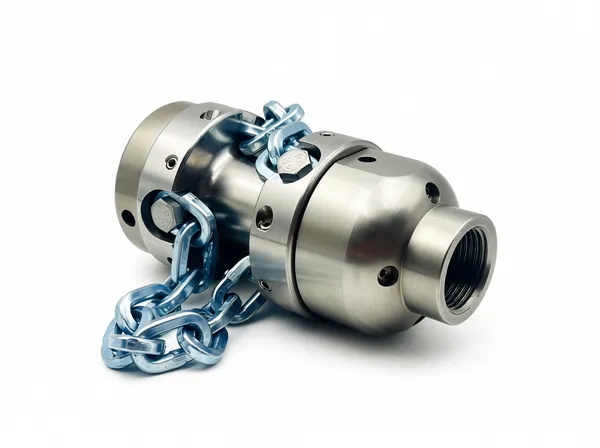

Side angle view Crossbow Nozzle BN3.3 highlighting robust metal body and precision connection ports for industrial fluid

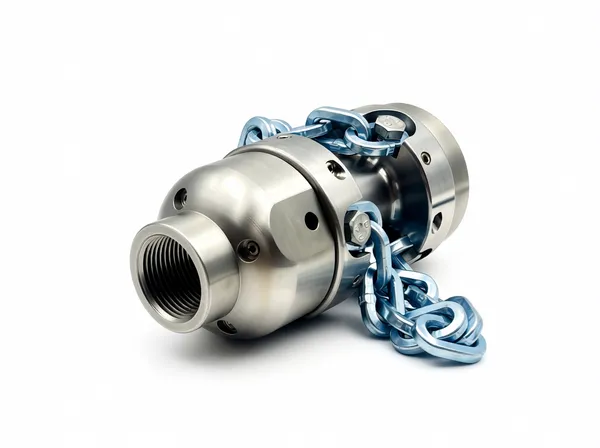

Close up nozzle face detail on Crossbow BN3.3 model demonstrating high-pressure spray pattern capability and threaded in
Back view Crossbow Nozzle BN3.3 showing mounting bracket compatibility and secure connection points for pump system inte

About This Product

Constructed from wear-resistant hardened stainless steel, the Crossbow Nozzle relies on high-strength chains to generate strong cutting force for pipeline cleaning. It supports different chain sizes and matching extension kits to adapt to various pipe diameters. The nozzle and accessories can be sold separately or as a complete set. With replaceable ceramic inserts, its service life is greatly prolonged compared with conventional drilled nozzles. It features NPT or BSPP thread connection, maximum working pressure up to 250Bar, and custom flow and pressure specifications are available upon request.
