Floor Cleaner Nozzle

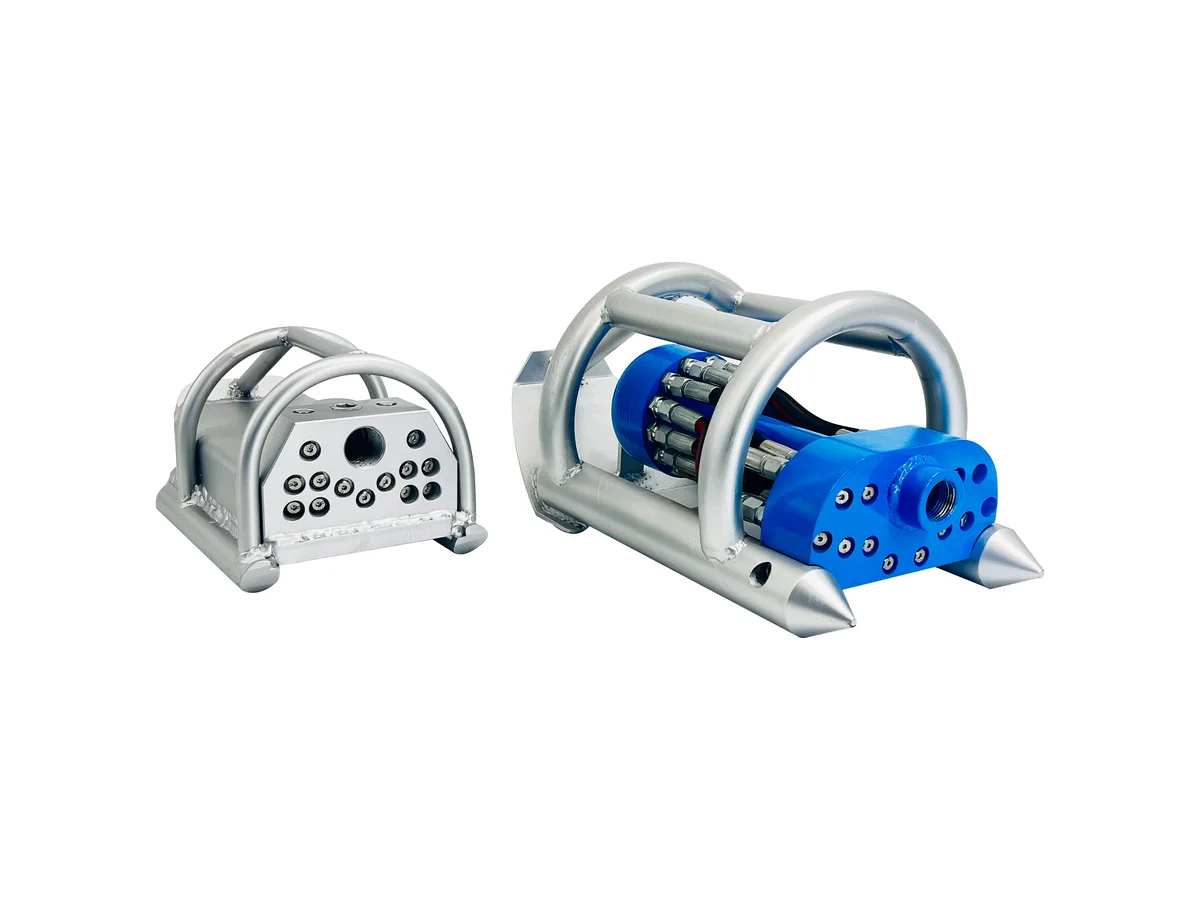

Floor Cleaner Nozzle is a heavy-duty high-pressure pipeline cleaning nozzle made of wear-resistant hardened steel. Its low-inclination design delivers superior traction and removal performance, specially built for cleaning sand, sludge and solid debris inside large flat pipes.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|
 TC15 | 400-1500 | 200 | 170 | 1" | 13 x M10x1 - 0°8°13°15°18° | 337*202*177 | 15 |
 TC20 | 400-1500 | 200 | 215 | 1" | 13 x M10x1 - 0°8°13°15°18° | 375*222*204 | 20 |
 TC25 | 400-1500 | 200 | 270 | 1" | 13 x M10x1 - 0°8°13°15°18° | 425*242*216 | 25 |
 TC30 | 400-1800 | 200 | 315 | 1" | 12 x M10x1 - 0°5°10°13°20°30° | 513*270*227 | 30 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

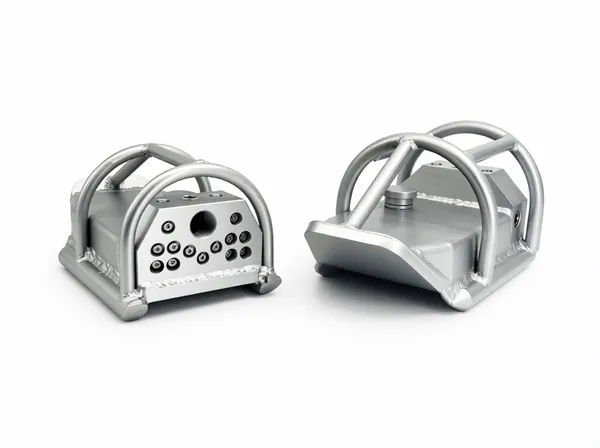

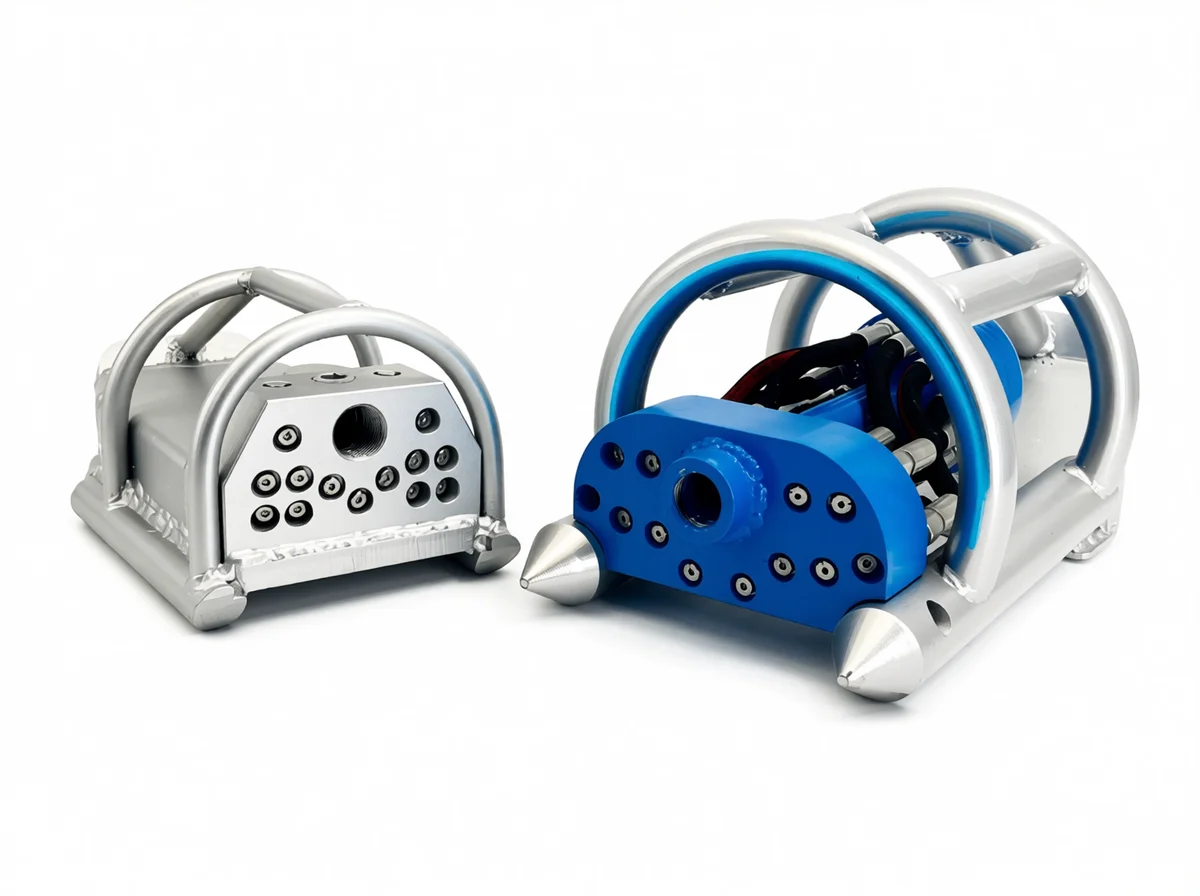

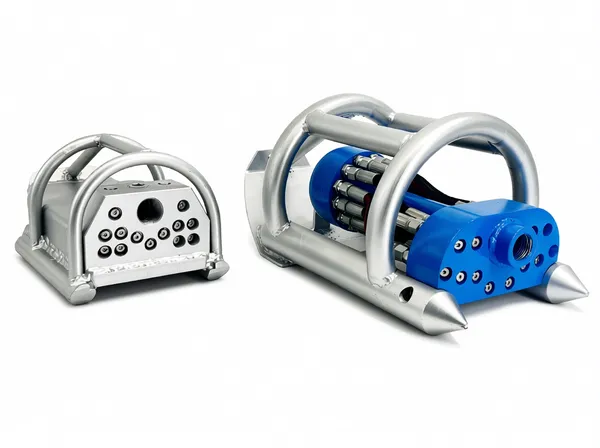

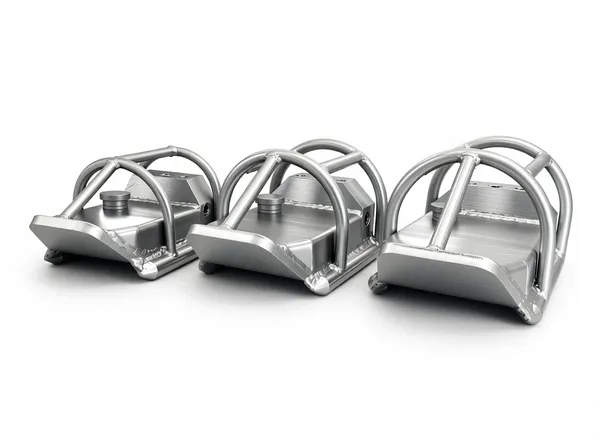

Product Gallery
About This Product
Constructed from wear-resistant hardened steel, the Floor Cleaner Nozzle adopts a low-inclination structure to achieve much better traction and material removal capacity compared with traditional sewer nozzles. It is equipped with replaceable ceramic inserts and works in combination with a straight swivel. This nozzle is designed for large pipelines to clear heavy compacted solids, sludge, stones and bricks. It features NPT or BSPP thread connection, maximum working pressure up to 250Bar, and custom flow and pressure options are available upon request.
