Front 6 Rear 3 Nozzle
Hardened stainless steel SL series front 6 rear 3 nozzle with 6 forward jets and 3 rear thrust jets, available in 1/4"F and 3/8" F thread for high-pressure pipeline jetting
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Dimension(mm) |
|---|---|---|---|---|---|---|
 SL0.065 | Customized | Customized | 1/4" | 6 x M4 | 3 x M4 | Φ25.7 x 31.5 |
 SL0.24 | Customized | Customized | 3/8" | 6 x M6 | 3 x M6 | Φ38.1 x 46.6 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

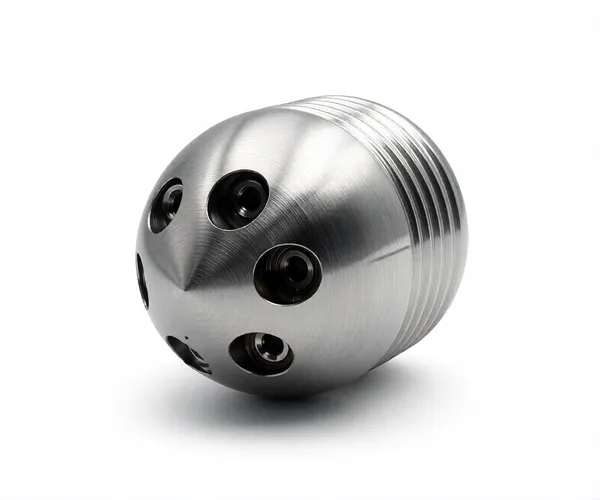

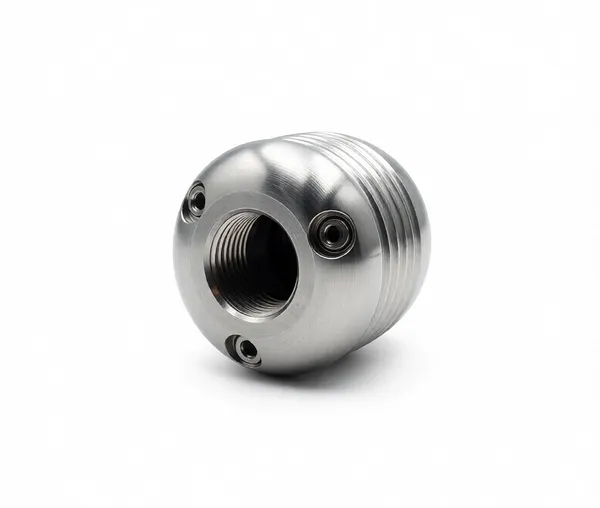

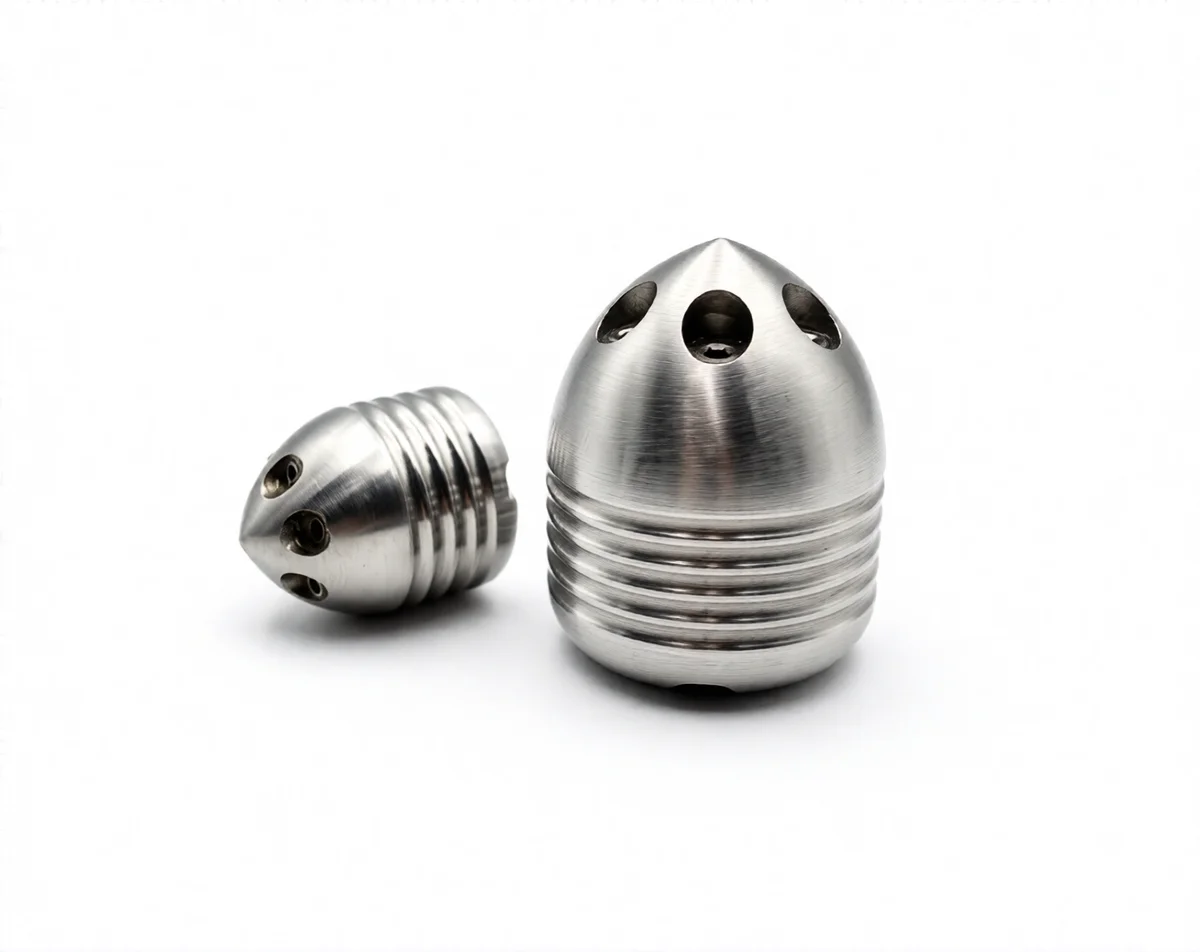

Product Gallery
About This Product
Our SL Front 6 Rear 3 Nozzle is precision made from hardened stainless steel for outstanding wear resistance under harsh jetting conditions. Two models are supplied: SL0.065 equipped with 6 x M4 forward jets and 3 x M4 rear jets, 1/4"female thread and Φ25.7 x 31.5 mm dimension; SL0.24 fitted with 6 x M6 forward jets and 3 x M6 rear jets, 3/8" female thread and Φ38.1 x 46.6 mm dimension. Flow rate and working pressure can be customized. The front jets deliver strong penetration to break clogs, while rear jets generate thrust to pull the nozzle forward through pipes.
