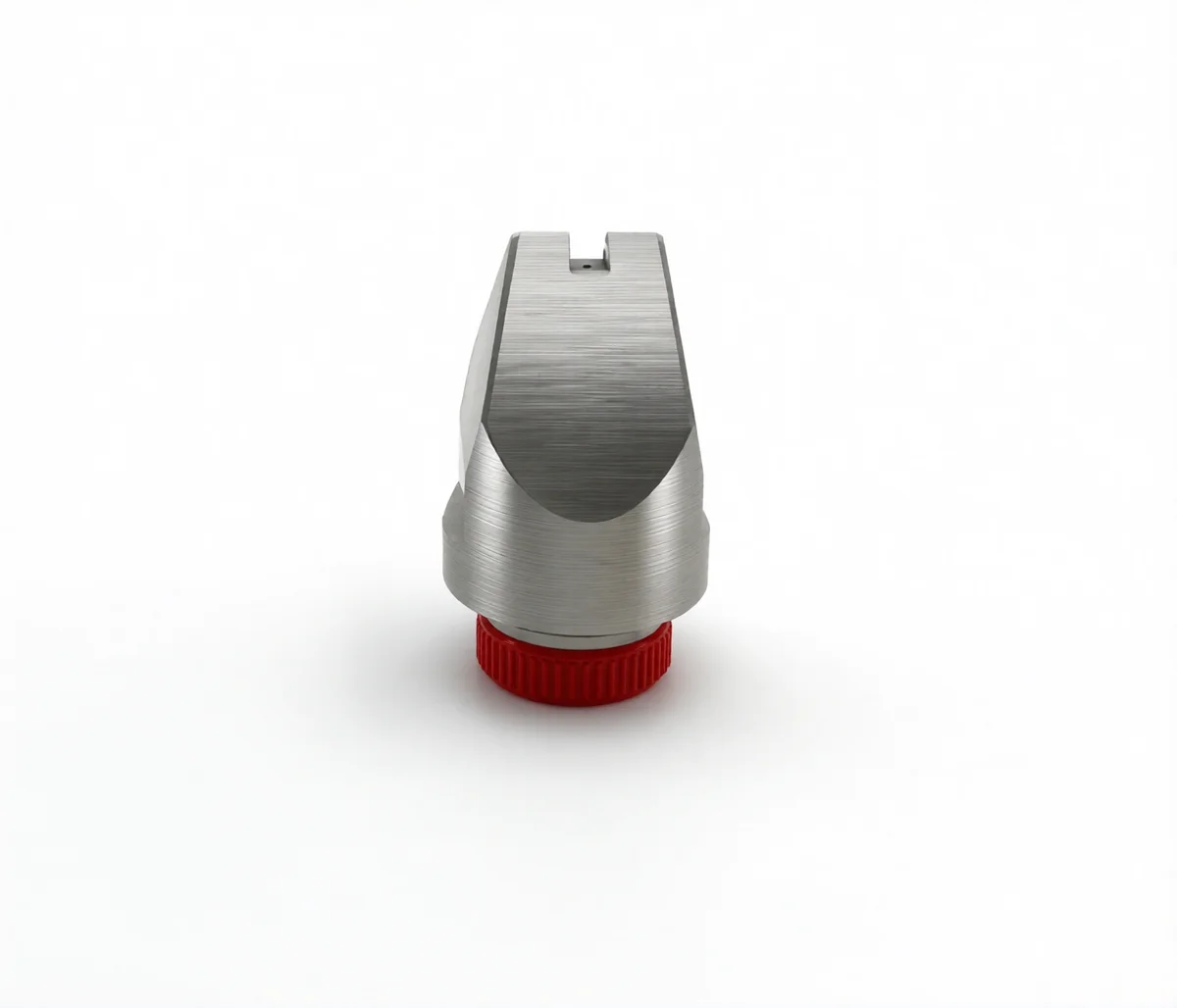

Jetaxe Nozzle
Hardened stainless steel PQF series Jetaxe Nozzle with forward penetrating jet and multiple rear thrust jets, 4GPM & 8GPM options, 3000-4000 Psi, 1/4" F thread
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Dimension(mm) |
|---|---|---|---|---|---|---|
 PQF-1 | 3000-4000 PSI | 4GPM | 1/4" | 1 x Φ0.5 | 6 x Φ0.6 | Φ22 x 32 |
 PQF-2 | 8GPM | 3000-4000 PSI | 1/4" | 1 x Φ0.6 | 3 x Φ0.8+ 3 x Φ0.9 | Φ22 x 32 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

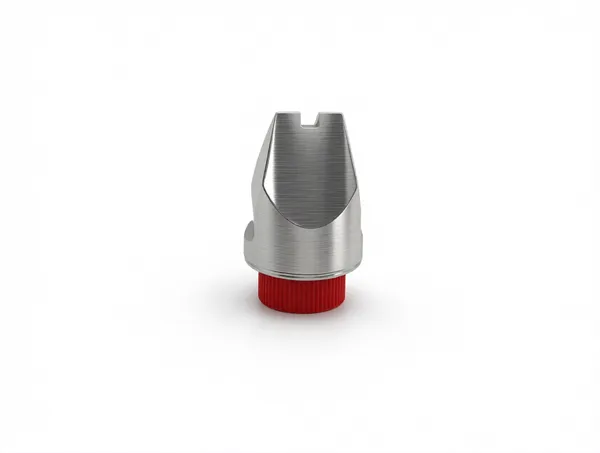

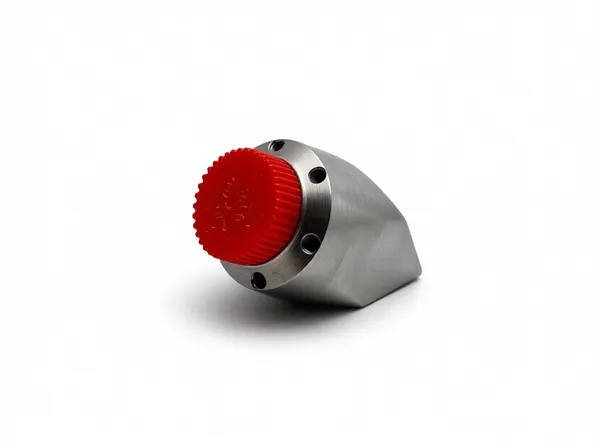

Product Gallery
About This Product
Our PQF Jetaxe Nozzle is precision manufactured from hardened stainless steel for excellent wear resistance in sewer and pipeline jetting work. Two models are available with identical Φ22 x 32 mm body size and 1/4" female thread. PQF-1 features 1 x Φ0.5 forward jet and 6 x Φ0.6 rear jets, rated at 4GPM within 3000-4000 Psi. PQF-2 comes with 1 x Φ0.6 forward jet and mixed rear jets of 3 x Φ0.8 plus 3 x Φ0.9, delivering 8GPM at 3000-4000 Psi. The front jet cuts through stubborn clogs, while rear jets provide steady thrust to pull the nozzle through pipes
Interested in Jetaxe Nozzle?
Contact our team for more information, technical specifications, and pricing
