Mini Penetrating Nozzle
Hardened stainless steel CC series mini penetrating nozzle with 3 forward jets and 6 rear jets, 1/4"F and 3/8" F thread for compact high-pressure pipeline jetting
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Dimension(mm) |
|---|---|---|---|---|---|---|
 CC0.08 | Customized | Customized | 1/4" | 3 x M4 | 6 x M4 | Φ25*65 |
 CC0.21 | Customized | Customized | 3/8" | 3 x M6 | 6 x M6 | Φ35 x 76 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios
Product Gallery
About This Product

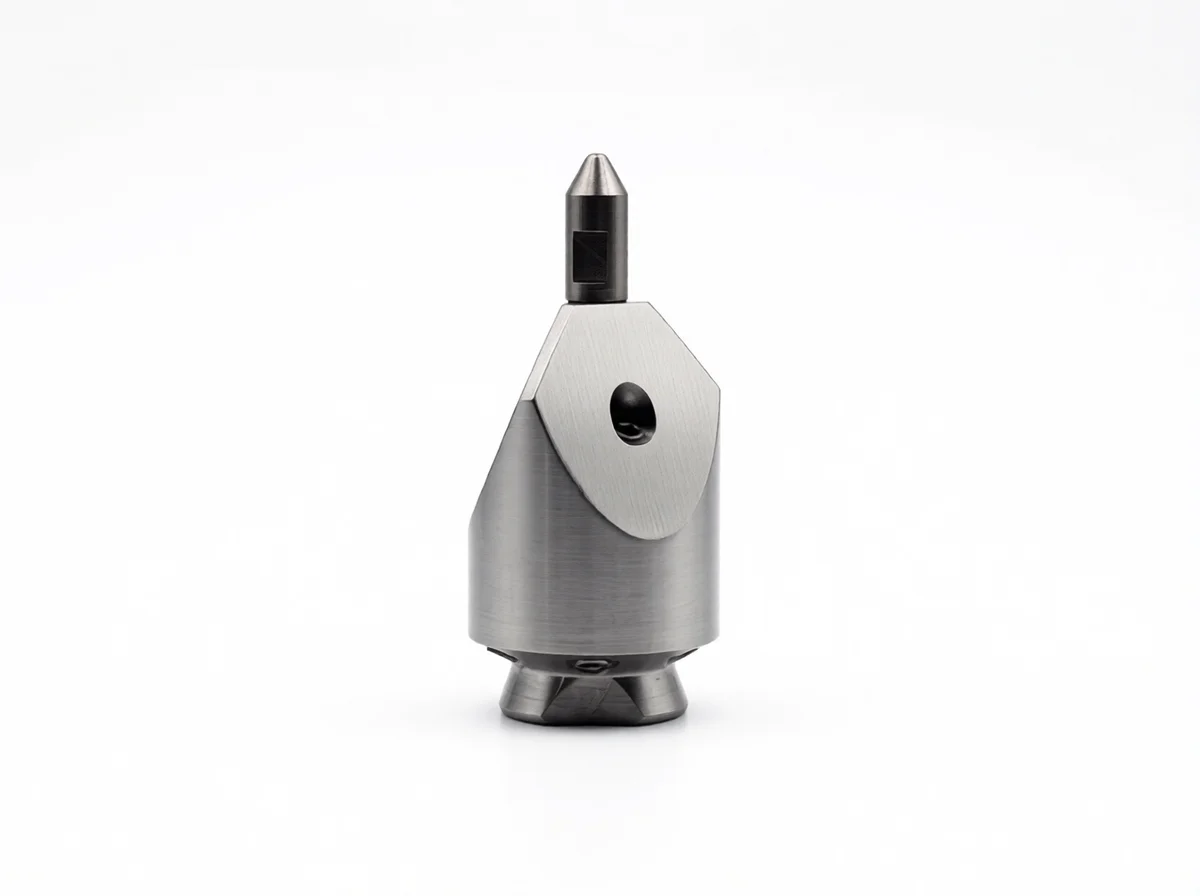

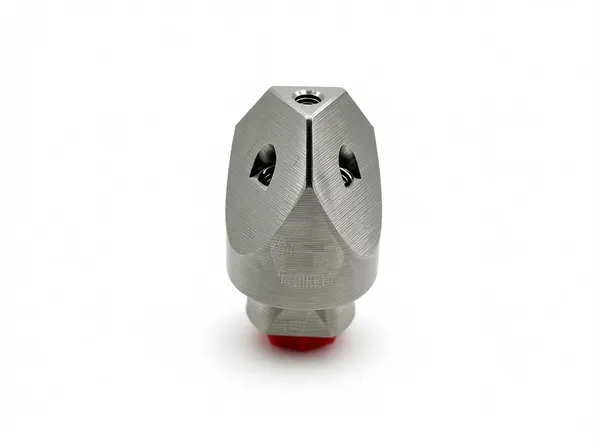

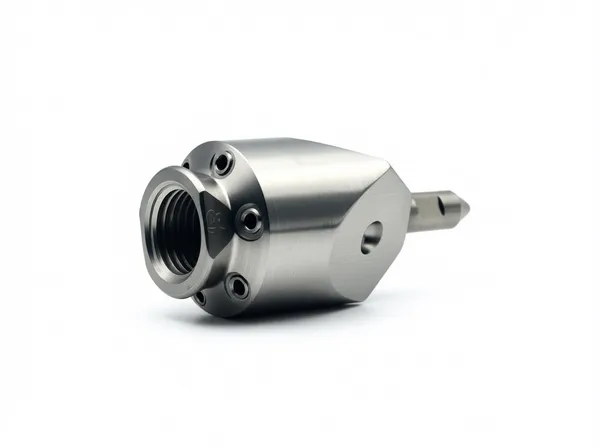

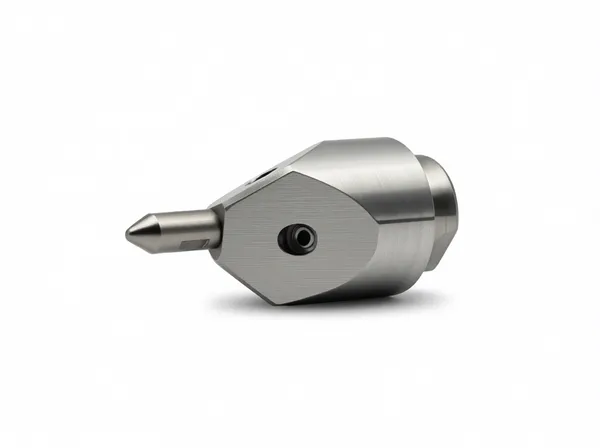

Our CC Mini Penetrating Nozzle is precision machined from hardened stainless steel to deliver reliable penetration and thrust in tight pipeline spaces. Two models are available: CC0.08 with 3 x M4 forward jets, 6 x M4 rear jets, 1/4"female thread and Φ25 x 65 mm dimension; CC0.21 equipped with 3 x M6 forward jets, 6 x M6 rear jets, 3/8" female thread and Φ35 x 76 mm dimension. Flow rate and working pressure can be customized. The forward jets cut through stubborn blockages, while rear jets generate powerful propulsion to pull the nozzle forward through narrow pipes
