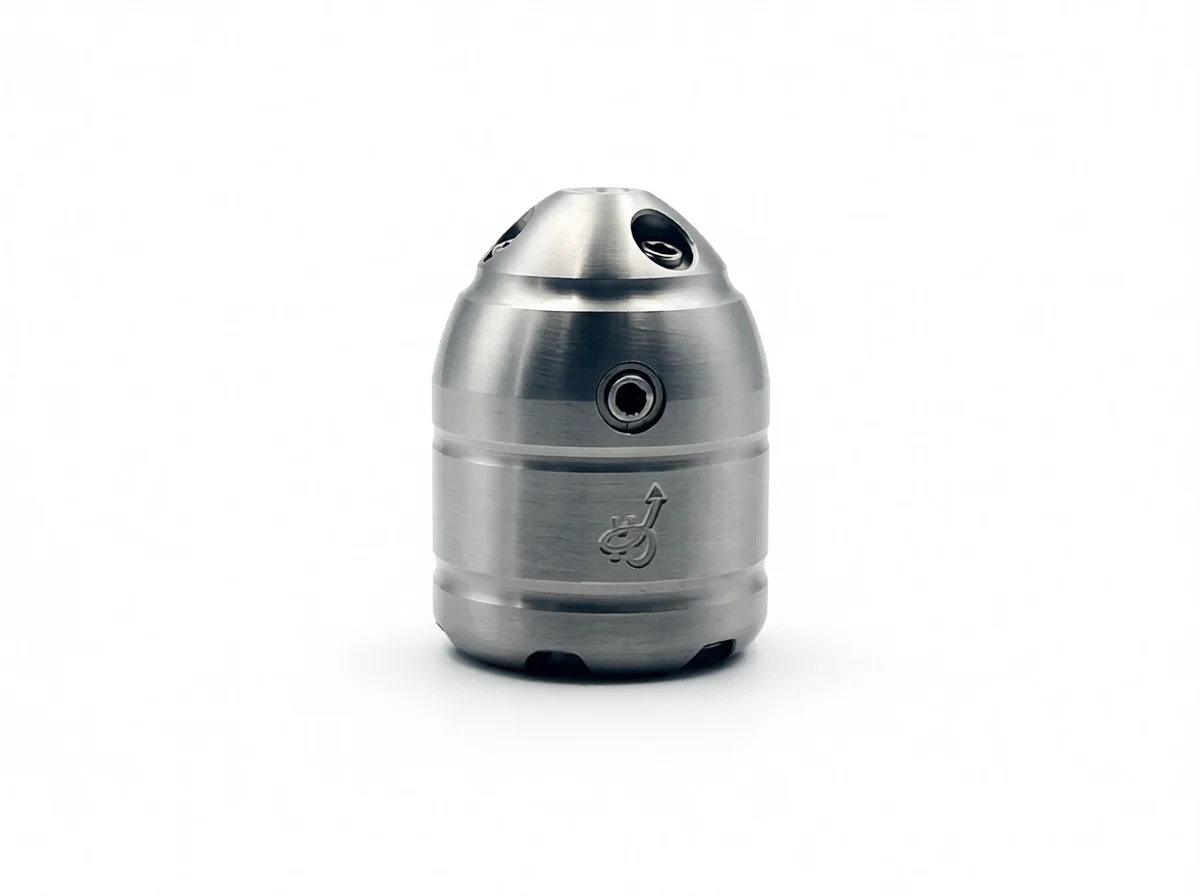

Mini Torpedo Nozzle
Hardened stainless steel SL series mini torpedo nozzle with 16 jet layout options, 1/4"F and 3/8" F thread for customized sewer and pipeline jetting
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Dimension(mm) | Front Jets | Side Jets | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
SL0.085-1 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | - | - | - |
SL0.085-2 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | 1 x M4 | - | - |
SL0.085-3 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | 3 x M4 | - | - |
SL0.085-4 | Customized | Customized | - | 6 x M4 | Φ25.7 x 35 | 3 x M4 | 1 x M4 | - |
SL0.085-5 | Customized | Customized | 1/4" | - | Φ25.7 x 35 | - | 1 x M4 | 6 x M4 |
SL0.085-6 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | 1 x M4 | 1 x M4 | - |
SL0.085-7 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | 4 x M4 | - | - |
SL0.085-8 | Customized | Customized | 1/4" | 6 x M4 | Φ25.7 x 35 | 4 x M4 | 1 x M4 | - |
SL0.32-1 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | - | - | - |
SL0.32-2 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 1 x M6 | - | - |
SL0.32-3 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 3 x M6 | - | - |
SL0.32-4 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 3 x M6 | 1 x M6 | - |
SL0.32-5 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | - | 1 x M6 | - |
SL0.32-6 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 1 x M6 | 1 x M6 | - |
SL0.32-7 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 4 x M6 | - | - |
SL0.32-8 | Customized | Customized | 3/8" | 6 x M6 | Φ38.1 x 55 | 4 x M6 | 1 x M6 | - |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

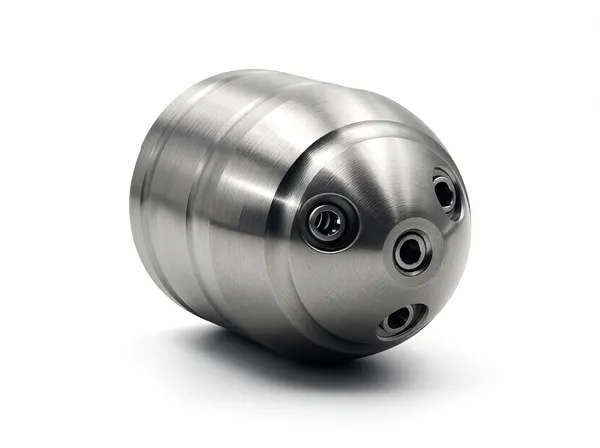

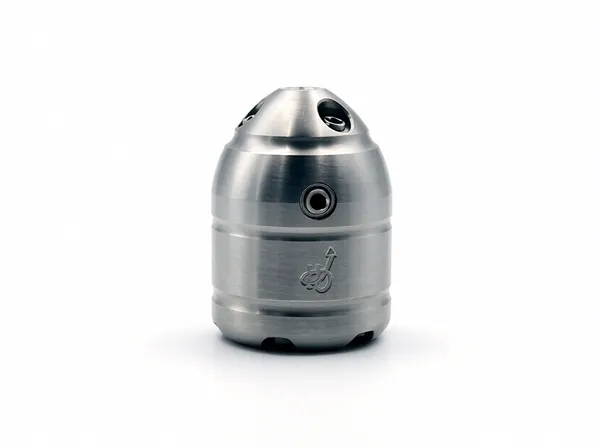

Product Gallery
About This Product
Our SL Mini Torpedo Nozzle is precision machined from hardened stainless steel for excellent wear resistance in pipe cleaning operations. It has two main body sizes: SL0.085 series with Φ25.7 x 35 mm and 1/4"female thread, and SL0.32 series with Φ38.1 x 55 mm and 3/8" female thread. Each series offers 8 different jet configurations with combinations of forward, side and rear jets, all equipped with 6 rear thrust jets. Flow rate and working pressure can be fully customized to match your job requirements. The torpedo-shaped streamlined body smoothly navigates pipe bends, rear jets deliver stable self-propelling force, while forward and side jets break up blockages and clean pipe walls
