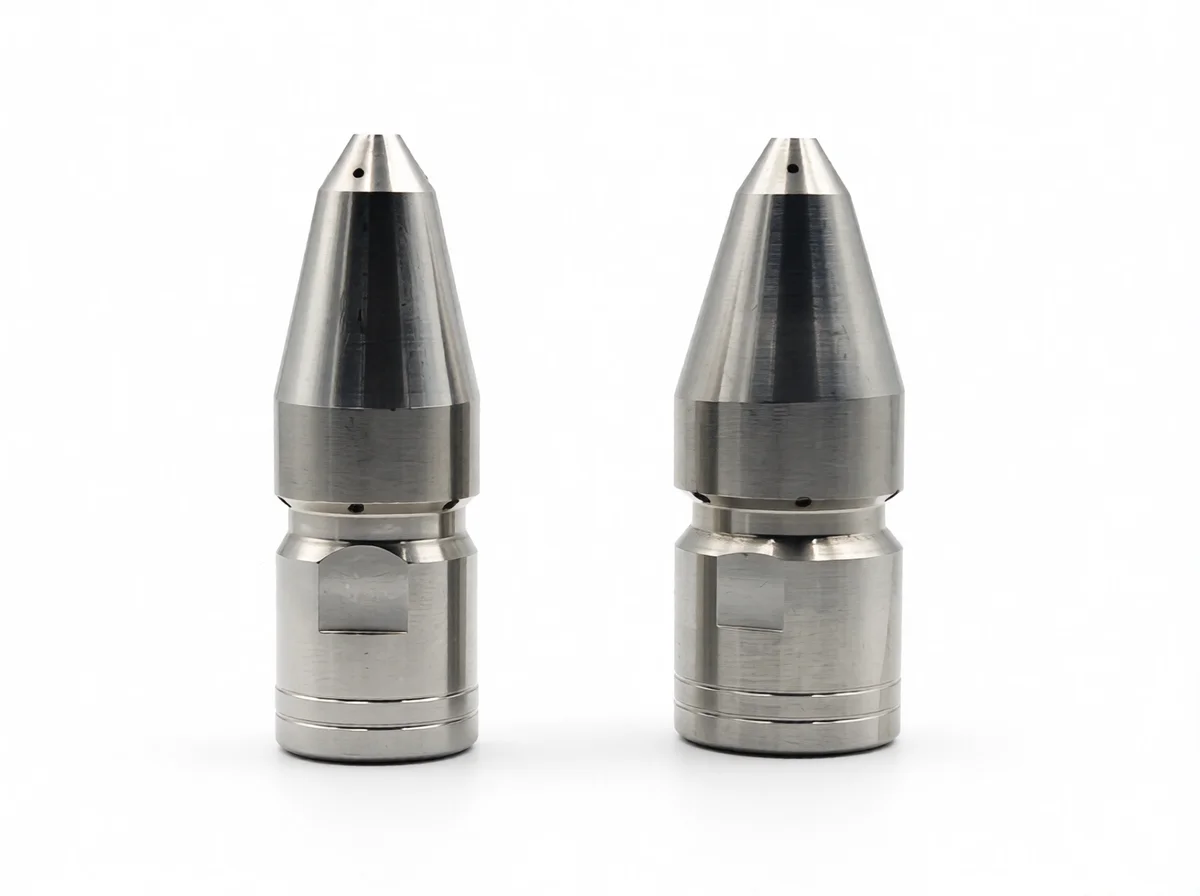

Penetrating Jet Nozzle
CTS series penetrating jet nozzle with two jet configurations, multiple thread sizes, stainless steel and hardened stainless steel options for heavy-duty pipeline jetting
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Side Jets | Dimension(mm) |
|---|---|---|---|---|---|---|---|
CTS0.125-1 | Customized | Customized | 1/8" | 3 | 6 | 1 | Φ15.6 x 47 |
CTS0.125-2 | Customized | Customized | 1/8" | - | 6 | 1 | Φ15.6 x 47 |
CTS0.25-1 | Customized | Customized | 1/4" | 3 | 6 | 1 | Φ19 x 57.5 |
CTS0.25-2 | Customized | Customized | 1/4" | - | 6 | 1 | Φ19 x 57.5 |
CTS0.375-1 | Customized | Customized | 3/8" | 3 | 6 | 1 | Φ22.5 x 60 |
CTS0.375-2 | Customized | Customized | 3/8" | - | 6 | 1 | Φ22.5 x 60 |
CTS0.5-1 | Customized | Customized | 1/2" | 3 | 6 | 1 | Φ27.8 x 70 |
CTS0.5-2 | Customized | Customized | 1/2" | - | 6 | 1 | Φ27.8 x 70 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

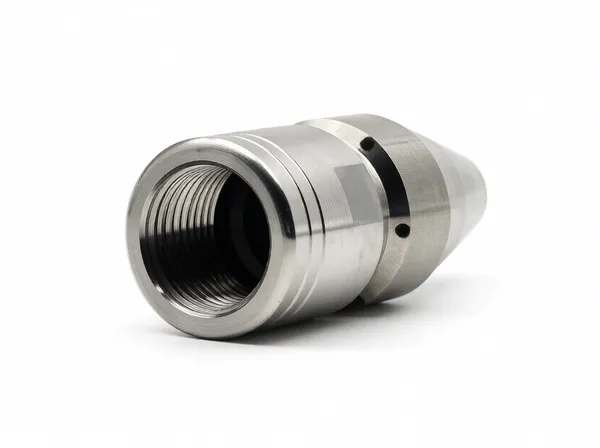

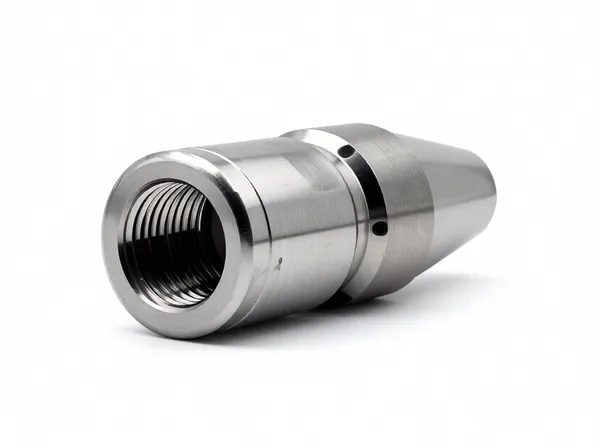

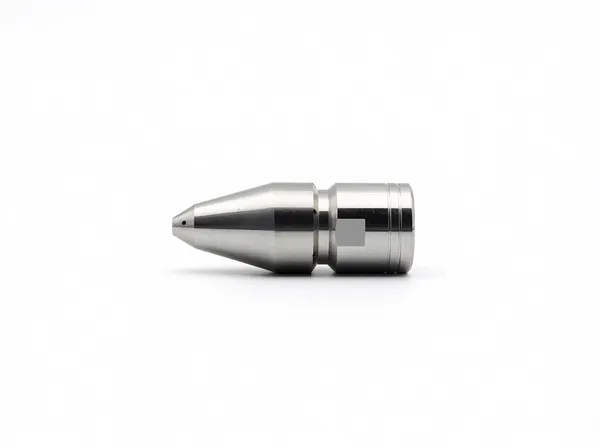

Product Gallery
About This Product
Our CTS Penetrating Jet Nozzle is available in stainless steel and hardened stainless steel grades, offered in 4 thread sizes: 1/8"F, 1/4" F, 3/8"F and 1/2" F. Each thread size provides two versions: Version 1 with 3 forward jets, 1 side jet and 6 rear jets; Version 2 with 1 side jet and 6 rear thrust jets. The tapered penetrating tip design delivers strong cutting force to break stubborn blockages. Flow rate and working pressure can be customized to fit different pipe cleaning requirements. Compact tapered profile allows smooth passage through bends and narrow pipelines
