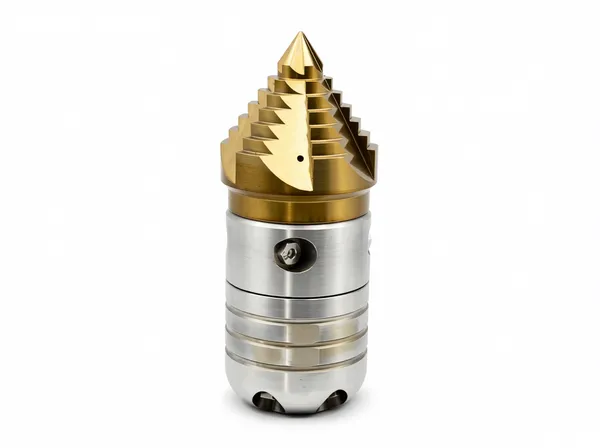

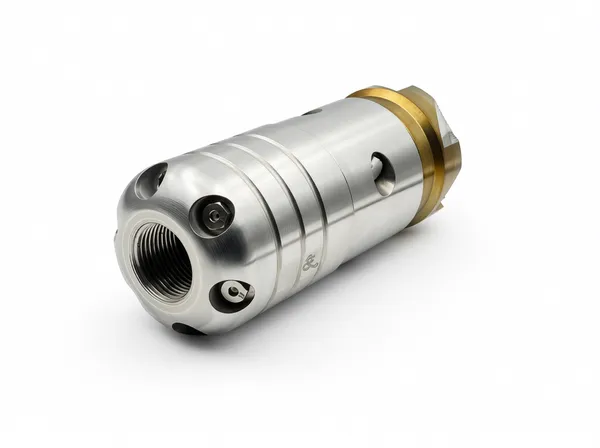

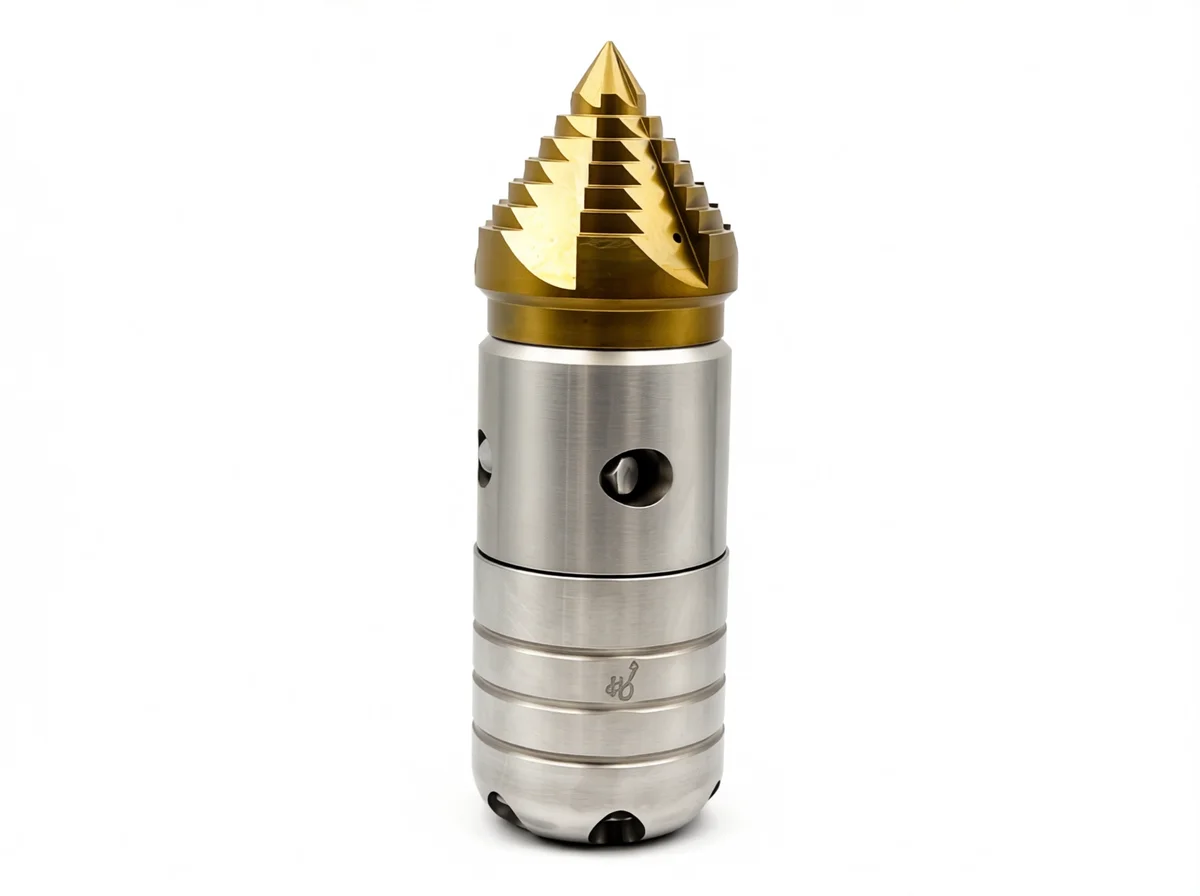

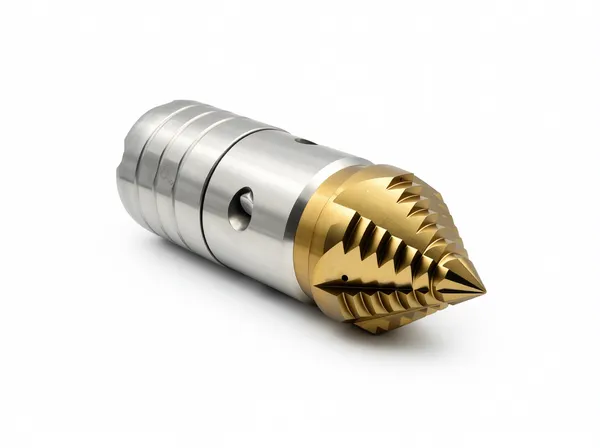

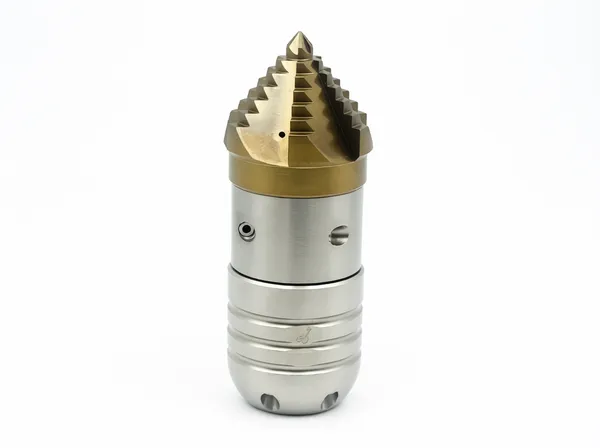

Quench Pagoda Nozzle
Pagoda Nozzle is a rotating high‑pressure pipeline cleaning nozzle with replaceable ceramic inserts, delivering powerful kinetic rotating jets to penetrate and clear grease, sediment and roots inside sewer and rainwater pipes.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Rotating Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|---|
 CBT1 | 80-200 | 137 | 170 | 3/4" | 6 x M6 - 20° | 4 x M6 - 90° | 49 x 121 | 1 |
 CBT3 | 100-300 | 172 | 215 | 1" | 6 x M10x1 - 25° | 4 x M10x1 - 90° | 74 x 172 | 3 |
 CBT5 | 100-300 | 172 | 215 | 1" | 6 x M10x1 - 25° | 4 x M10x1 - 90° | 74 x 220 | 5 |
CBT0.5 | 60-150 | 137 | 60 | 3/8" | 6 x M6 - 35° | 4 x M6 - 90° | 36 x 98 | 0.5 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios
Product Gallery
About This Product
Fabricated from wear‑resistant hardened stainless steel, the Pagoda Nozzle generates high‑pressure rotating water jets with strong kinetic energy to strike, penetrate and wash away dirt and stubborn deposits inside pipework. Featuring fully replaceable ceramic inserts, it offers significantly longer service life compared with conventional drilled nozzles. It comes with NPT or BSPP thread connection, maximum working pressure up to 172Bar, and custom flow & pressure specifications can be provided upon request.
Interested in Quench Pagoda Nozzle?
Contact our team for more information, technical specifications, and pricing
