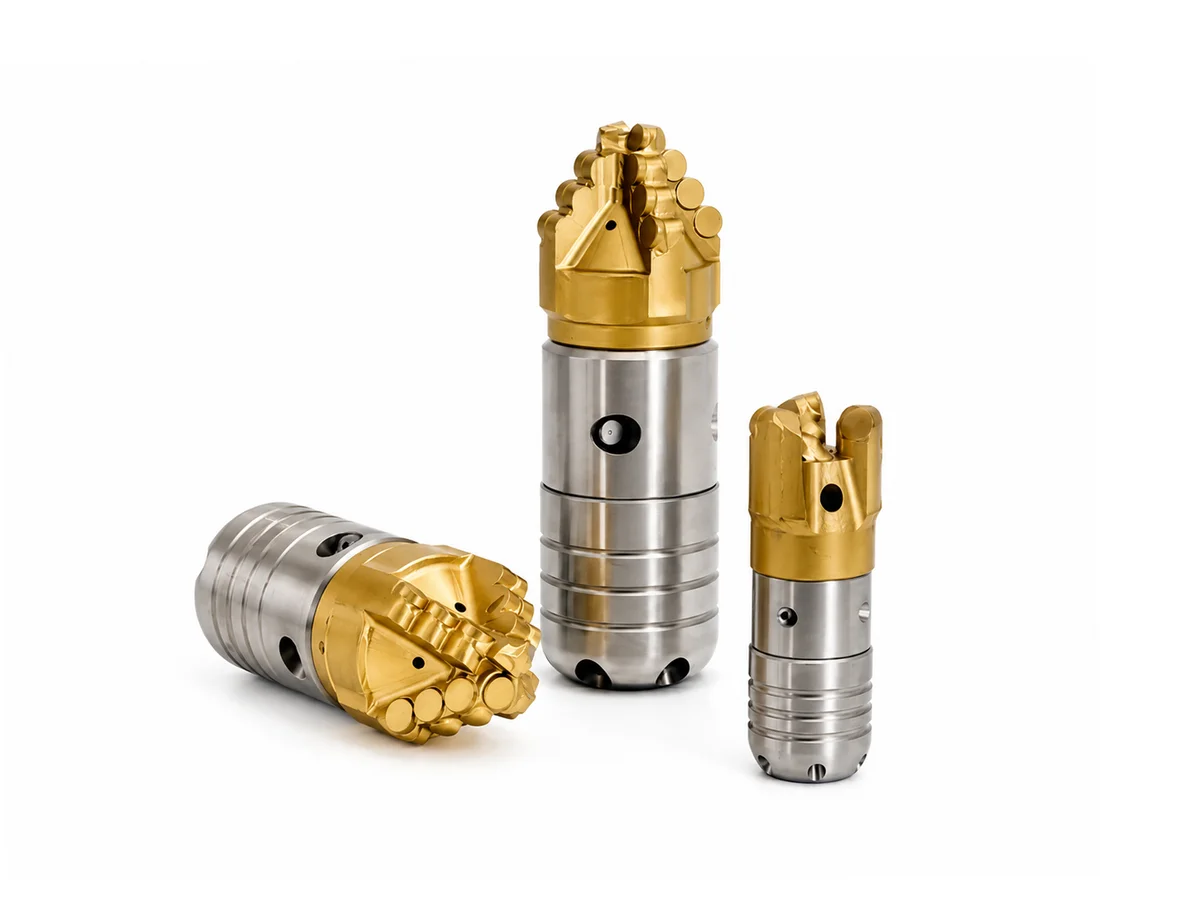

Rock Pagoda Nozzle
Rock Pagoda Nozzle is a heavy‑duty rotating high‑pressure pipeline cleaning nozzle built with hardened stainless steel and diamond composite, using high‑kinetic rotating jets to penetrate and clear hard blockages in sewage and rainwater pipes.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Rotating Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|---|

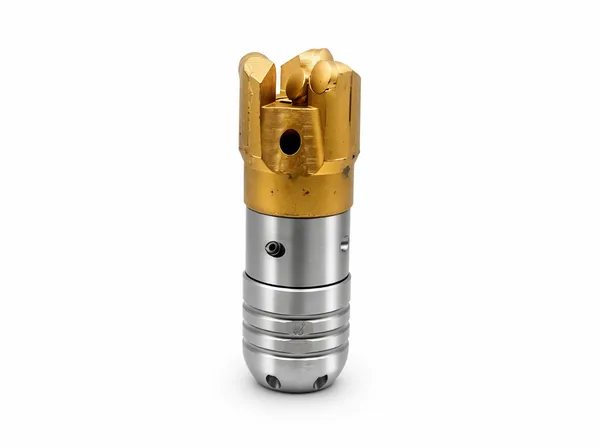

 BT1.2 | 80-200 | 137 | 170 | 3/4" | 6 x M6 - 20° | 4 x M6 - 90° | 49 x 136 | 1.2 |

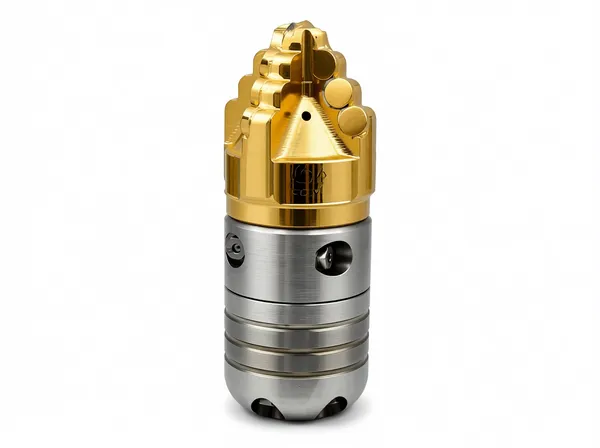

 BT3.3 | 100-300 | 172 | 215 | 1" | 6 x M10x1 - 25° | 4 x M10x1 - 90° | 75 x 159 | 3.3 |
 BT5 | 100-300 | 172 | 215 | 1" | 6 x M10x1 - 25° | 4 x M10x1 - 90° | 75 x 207 | 5 |
BT0.5 | 60-150 | 137 | 60 | 3/8" | 6 x M6 - 35° | 4 x M6 - 90° | 36 x 107 | 0.5 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios
Product Gallery
About This Product
Constructed from wear‑resistant hardened stainless steel and diamond composite material, the Rock Pagoda Nozzle generates high‑pressure rotating water jets with powerful kinetic energy to break, penetrate and flush away dirt and heavy blockages inside pipelines. Equipped with replaceable ceramic inserts, it delivers far longer service life compared with standard drilled nozzles. It supports NPT or BSPP thread connection, maximum working pressure reaches 172Bar, custom flow and pressure parameters are available upon customer request.
Interested in Rock Pagoda Nozzle?
Contact our team for more information, technical specifications, and pricing
