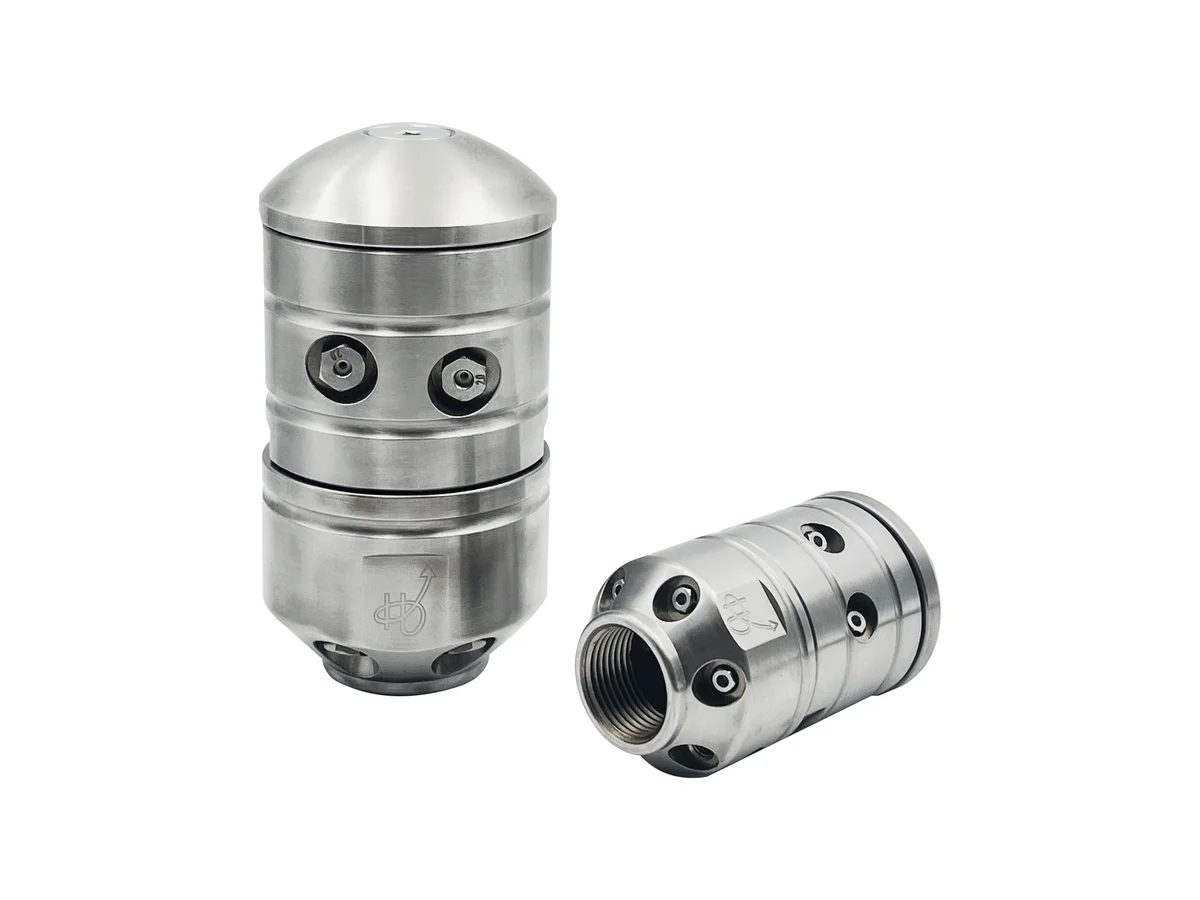

Rotor Nozzle
Rotor Nozzle is a heavy-duty high-pressure pipeline cleaning nozzle made of wear-resistant hardened stainless steel, utilizing powerful radial jets to strip scale, grease and roots from pipe inner walls.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Rear Jets | Rotating Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|---|
 GB1.2 | 100-200 | 200 | 170 | 3/4" | 6 x M6 - 20° | 4 x M6 - 2 x 90°+2 x 85° | 53 x 93.5 | 1.2 |
 GB3.1 | 100-300 | 137 | 300 | 1" | 6 x M10x1 - 20° | 4 x M10x1 - 2 x 90°+2 x 85° | 70 x 132 | 3.1 |
GB0.36 | - | - | - | 1/2" | 6 | 3 | - | 0.36 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

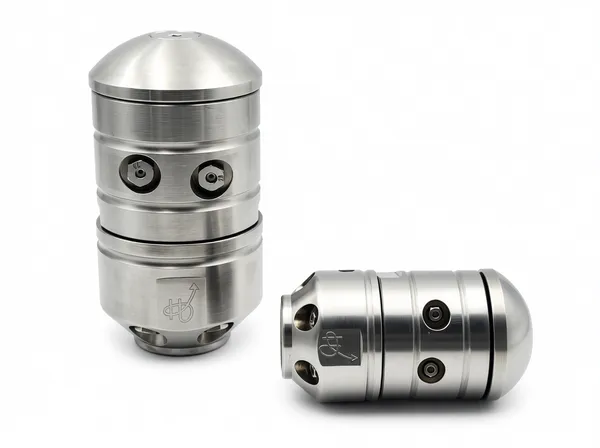

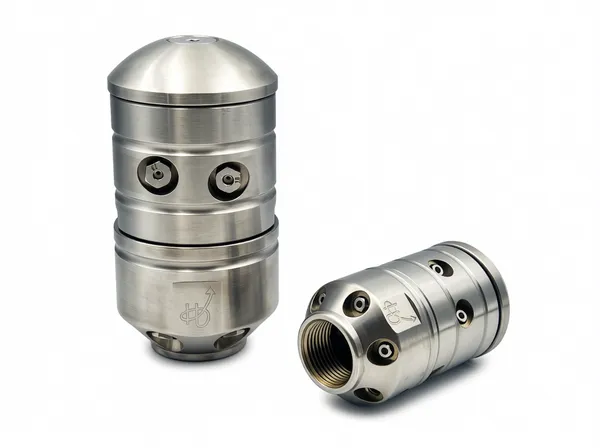

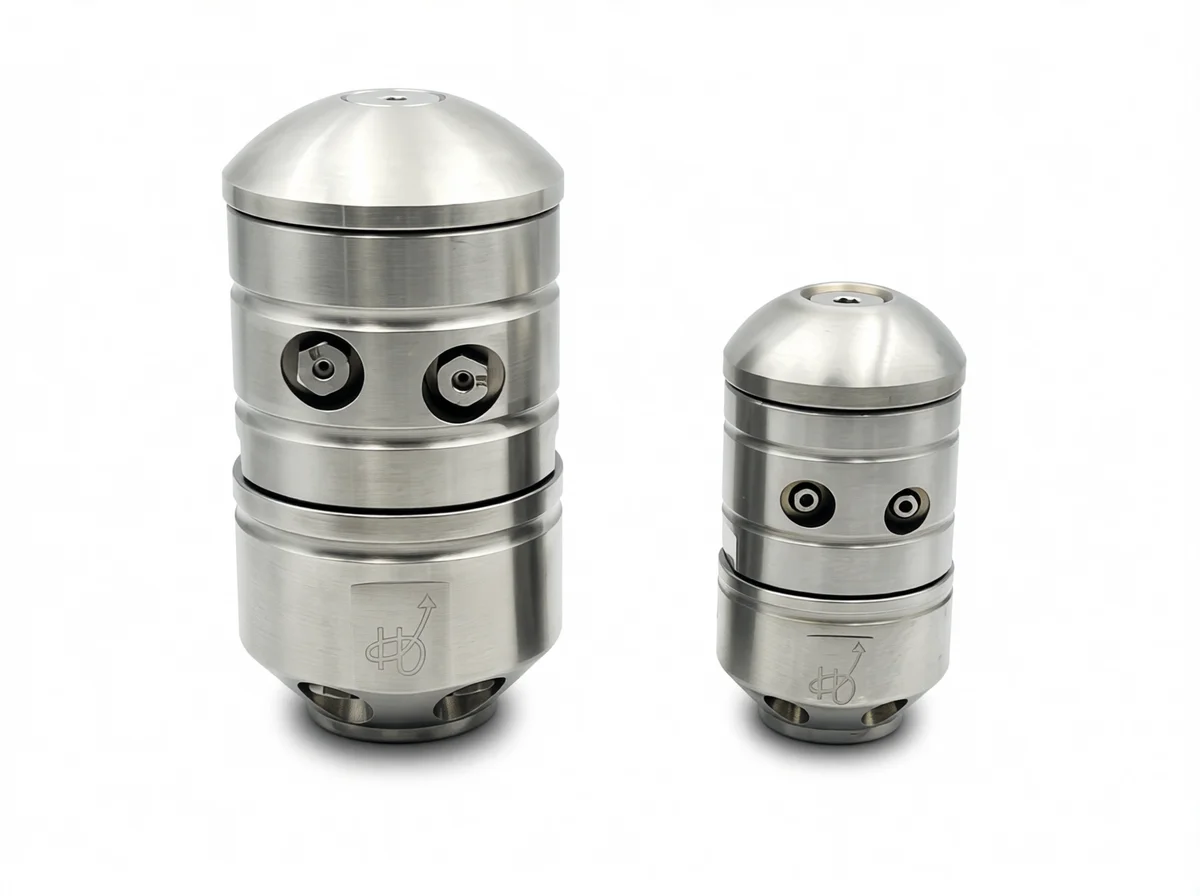

Product Gallery
About This Product
Fabricated from wear-resistant hardened stainless steel, the Rotor Nozzle delivers aggressive penetrating cleaning power via radial jets, perfectly suited to eliminate scale, grease and other pipeline deposits. For uniform and superior cleaning results, match it with a proper centralizer to keep the nozzle centered inside the pipe. It adopts replaceable ceramic inserts to achieve a much longer service life than conventional drilled nozzles. It supports NPT or BSPP thread connection, maximum working pressure up to 250Bar, custom flow and pressure configurations are available upon request.
Interested in Rotor Nozzle?
Contact our team for more information, technical specifications, and pricing
