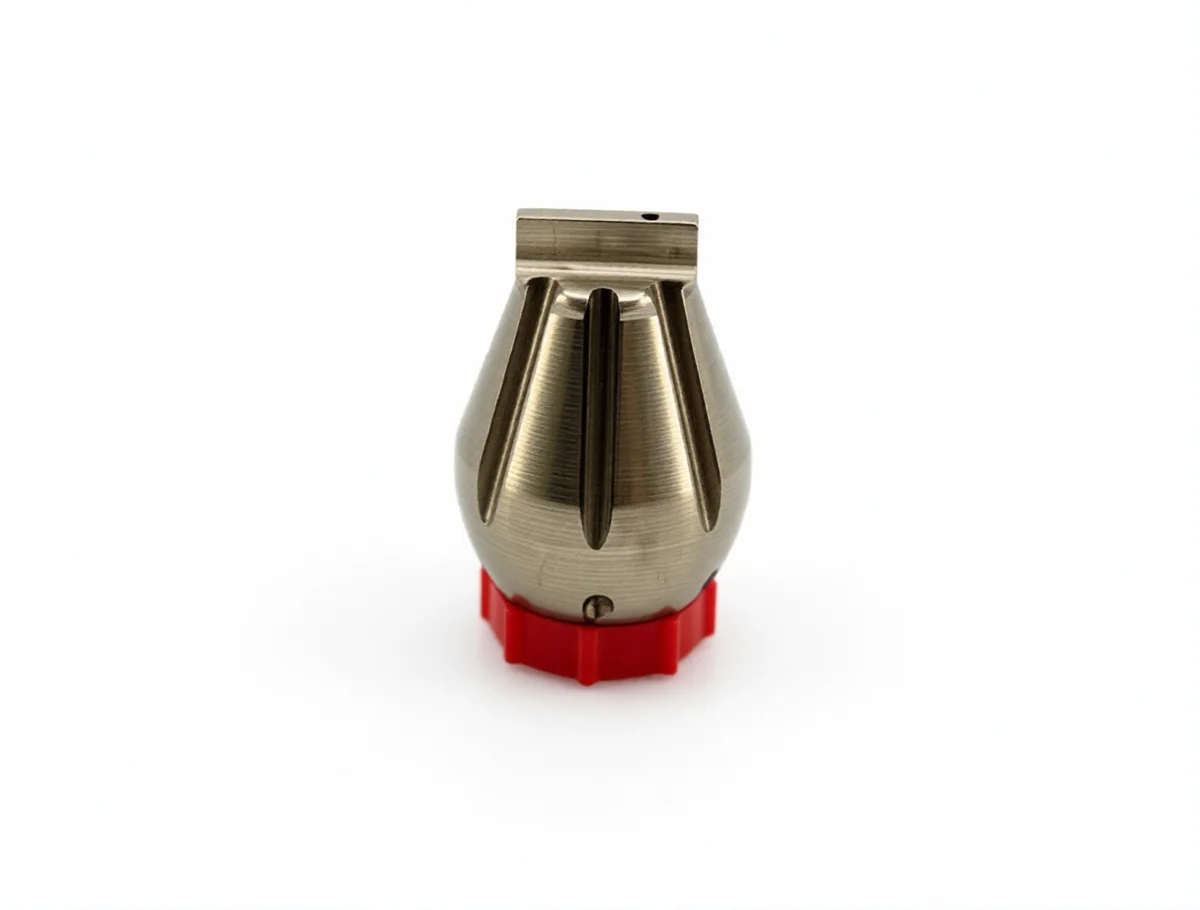

Screw Nozzle
Hardened stainless steel LSD series screw nozzle with forward cutting jet and mixed rear thrust jets, 4GPM / 8GPM and customized flow options for high-pressure sewer jetting
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Dimension(mm) |
|---|---|---|---|---|---|---|
LSD-1 | 3000-4000 PSI | 4GPM | 1/4" | 1 x Φ0.6 | 3 x Φ0.5+ 3 x Φ0.6 | Φ22 x 32 |
LSD-2 | 3000-4000 PSI | 8GPM | 1/4" | 1 x Φ0.6 | 3 x Φ0.8 + 3 x Φ0.9 | Φ22 x 32 |
LSD-3 | Customized | Customized | - | 1 x Φ0.6 | 6 x Φ0.9 | Φ25 x 32 |
Key Features
What makes this product special
Applications
Ideal for various cleaning scenarios

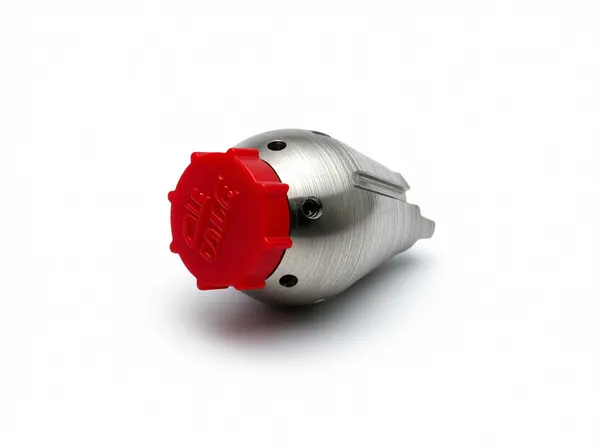

Product Gallery
About This Product
Our LSD Screw Nozzle is precision machined from hardened stainless steel for outstanding wear resistance in heavy-duty pipe cleaning. Three models are available: LSD-1 with 1 x Φ0.6 forward jet, mixed rear jets of 3 x Φ0.5 + 3 x Φ0.6, 1/4"female thread, 4GPM at 3000-4000 Psi and Φ22 x 32 mm size; LSD-2 with 1 x Φ0.6 forward jet, mixed rear jets of 3 x Φ0.8 + 3 x Φ0.9, 1/4" female thread, 8GPM at 3000-4000 Psi and Φ22 x 32 mm size; LSD-3 with 1 x Φ0.6 forward jet and 6 x Φ0.9 rear jets, 3/8" female thread, customized flow and pressure, Φ25 x 32 mm size. The front jet cuts through stubborn roots and hard deposits, while rear jets provide stable pulling force to propel the nozzle forward through pipelines
