Sewer Nozzles

Swirl Nozzle

Hardened stainless steel XLPZ swirl nozzle with 1 forward jet and 2 rear jets, designed for swirling high-pressure pipeline cleaning

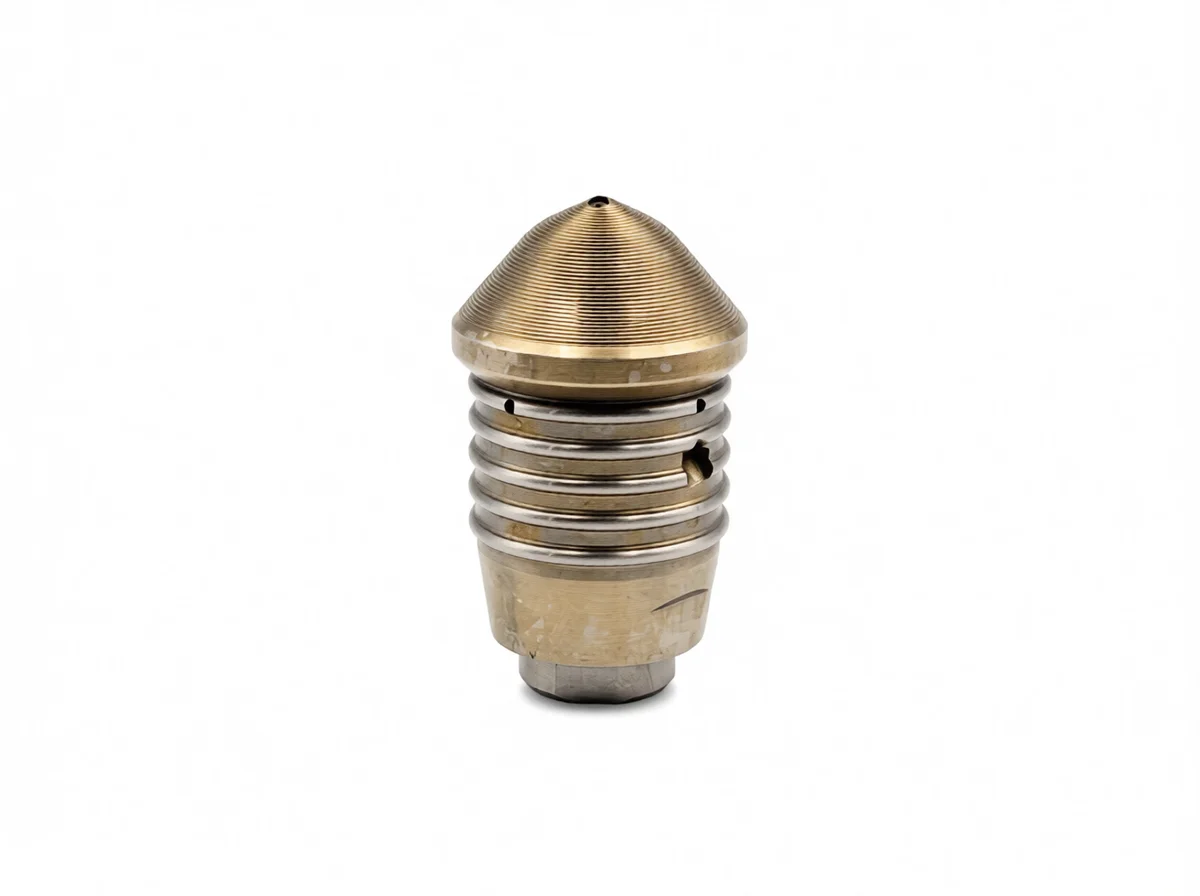

Swirl Nozzle - Industrial High Pressure Cleaning Equipment

Product Variants & Specifications

Specific flow and pressure can be adjusted according to actual requirements

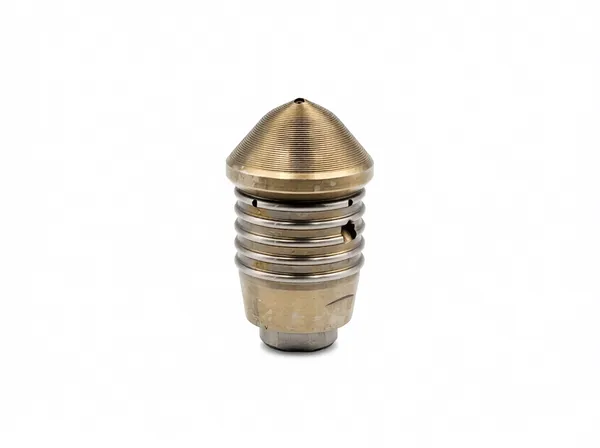

Swirl Nozzle XLPZ Specifications

XLPZ Specifications

Pressure(Bar)3000-5000 PSI
Flow(LPM)7GPM
Hose Connection (Inch)1/4"
Front Jets1 x Φ0.7
Dimension(mm)Φ42 x 71

Key Features

What makes this product special

Hardened stainless steel
swirl rotational jet design
1 forward cutting jet
2 rear thrust jets
1/4" female thread
Φ42×71 size
customizable flow and pressure
wide cleaning coverage
strong descaling performance
abrasion resistant

Applications

Ideal for various cleaning scenarios

Sewer grease removal
pipeline mineral descaling
drainage sludge cleaning
industrial tubing residue washing
high pressure swirling jet cleaning

Product Gallery

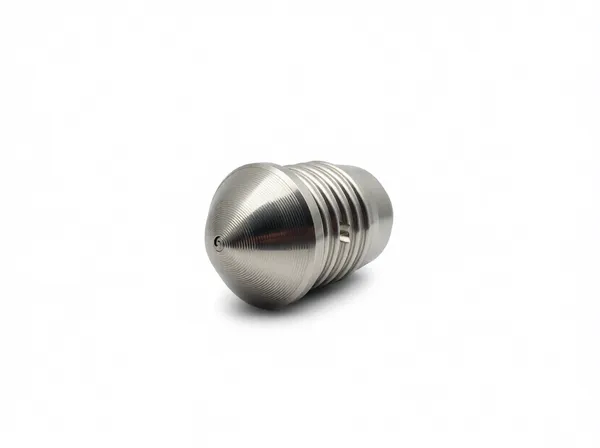

Swirl Nozzle - gallery 1

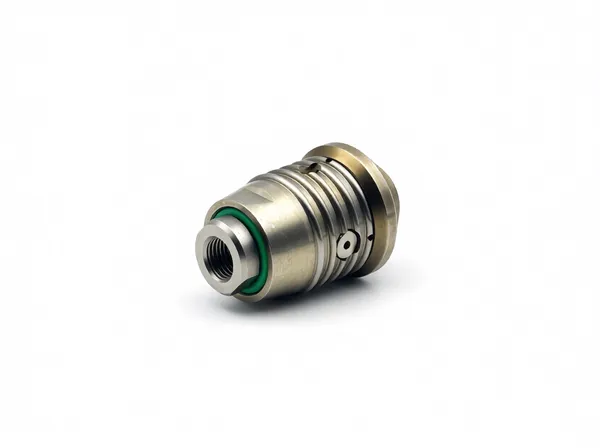

Swirl Nozzle - gallery 2

About This Product

Our XLPZ Swirl Nozzle is precision machined from hardened stainless steel for superior wear resistance under high pressure. It is configured with 1 x Φ0.7 forward jet and 2 x Φ1.2 rear thrust jets, fitted with 1/4" female thread and dimension Φ42 x 71 mm. Flow rate and working pressure can be customized according to job requirements. The swirl structure creates a rotational water jet, which efficiently strips off sludge, grease and mineral deposits on pipe inner walls while rear jets provide stable self-propelling force to pull the nozzle forward

Interested in Swirl Nozzle?

Contact our team for more information, technical specifications, and pricing
