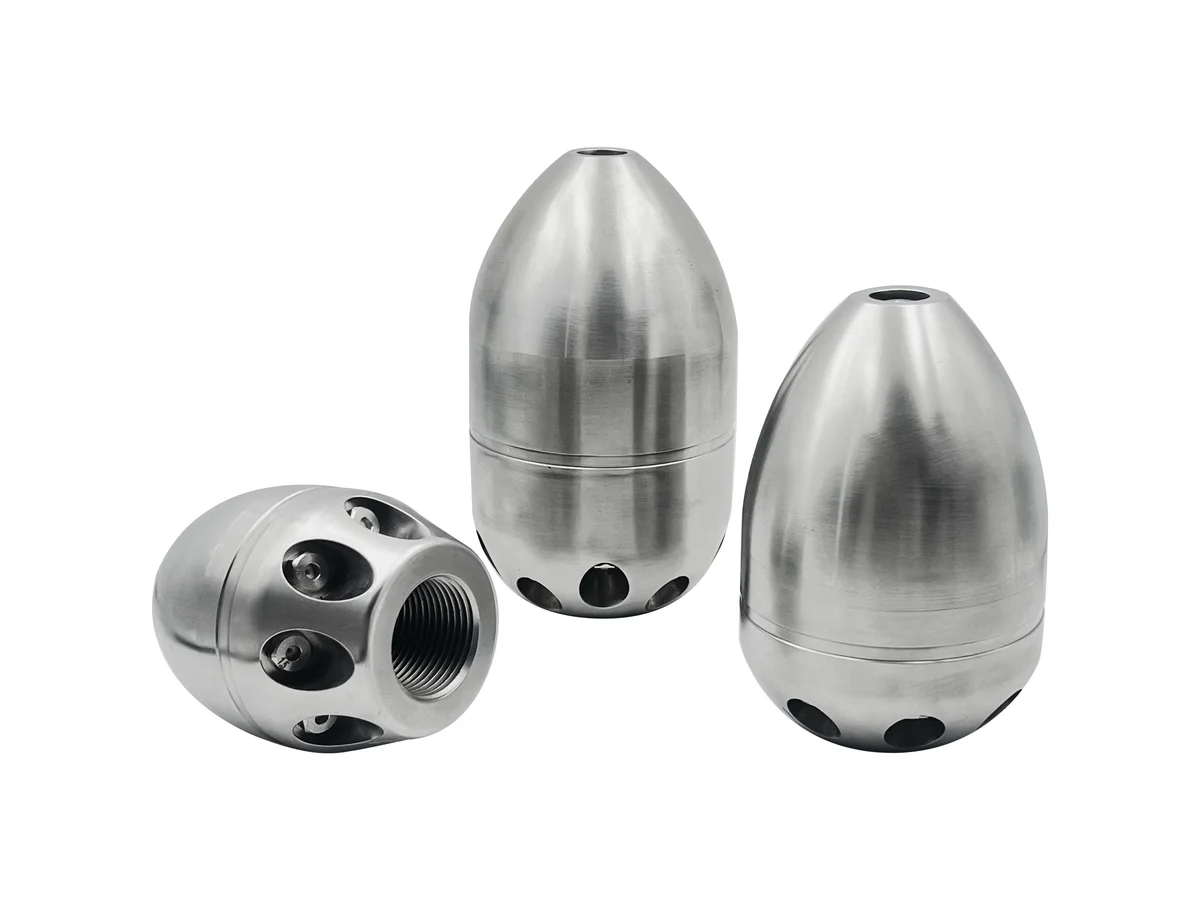

Torpedo Nozzle
The nozzle is made of wear-resistant hardened stainless steel, with a front ceramic insert and a plug (interchangeable). All ceramic inserts are replaceable, which extend nozzle's service life several times than drilled nozzles.
Product Variants & Specifications
Specific flow and pressure can be adjusted according to actual requirements
Choose a variant to view detailed specifications
| Model | Working DN (mm) | Pressure(Bar) | Flow(LPM) | Hose Connection (Inch) | Front Jets | Rear Jets | Dimension(mm) | Weight(KG） |
|---|---|---|---|---|---|---|---|---|
 SL0.5 | 80-200 | 200 | 100 | 1/2" | 1 x M6 - 0° | 6 x M6 - 25° | 44.5 x 59 | 0.5 |
 SL1.5 | 100-400 | 200 | 135 | 1" | 1 x M10x1 - 0° | 8 x M10 x1 - 20° | 71.5 x 96 | 1.5 |
 SL3 | 100-600 | 200 | 170 | 1" | 1 x M10x1 - 0° | 8 x M10x1 - 30° | 74 x 130 | 3 |
 SL3.5 | 200-600 | 200 | 170 | 1" | 1 x M10x1 - 0° | 8 x M10x1 - 25° | 85.5 x 123 | 3.5 |
 SL5 | 200-600 | 200 | 215 | 1" | 1 x M10 x1 - 0° | 10 x M10 x1 - 20°+25° | 89 x 148 | 5 |
 SL6.5 | 200-600 | 200 | 215 | 1" | 1 x M10x1 - 0° | 10 x M10x1 - 20°+25° | 89 x 180 | 6.5 |
 SL8 | 300-1200 | 200 | 270 | 1" | 1 x M10x1 - 0° | 12 x M10x1 - 20°+30° | 97.5 x 185 | 8 |
 SL9.3 | 300-1200 | 200 | 315 | 1" | 1 x M10x1 - 0° | 12 x M10x1 - 15°+20° | 103 x 200 | 9.3 |
SL0.7 | - | - | - | 3/4" | 1 x M10x1 - 0° | 8 x M10x1 - 30° | 60x83 | 0.7 |
SL4.7 | - | - | - | 1" | 1 x M10x1 - 0° | 10 x M10 x1 - 10°+30° | - | - |

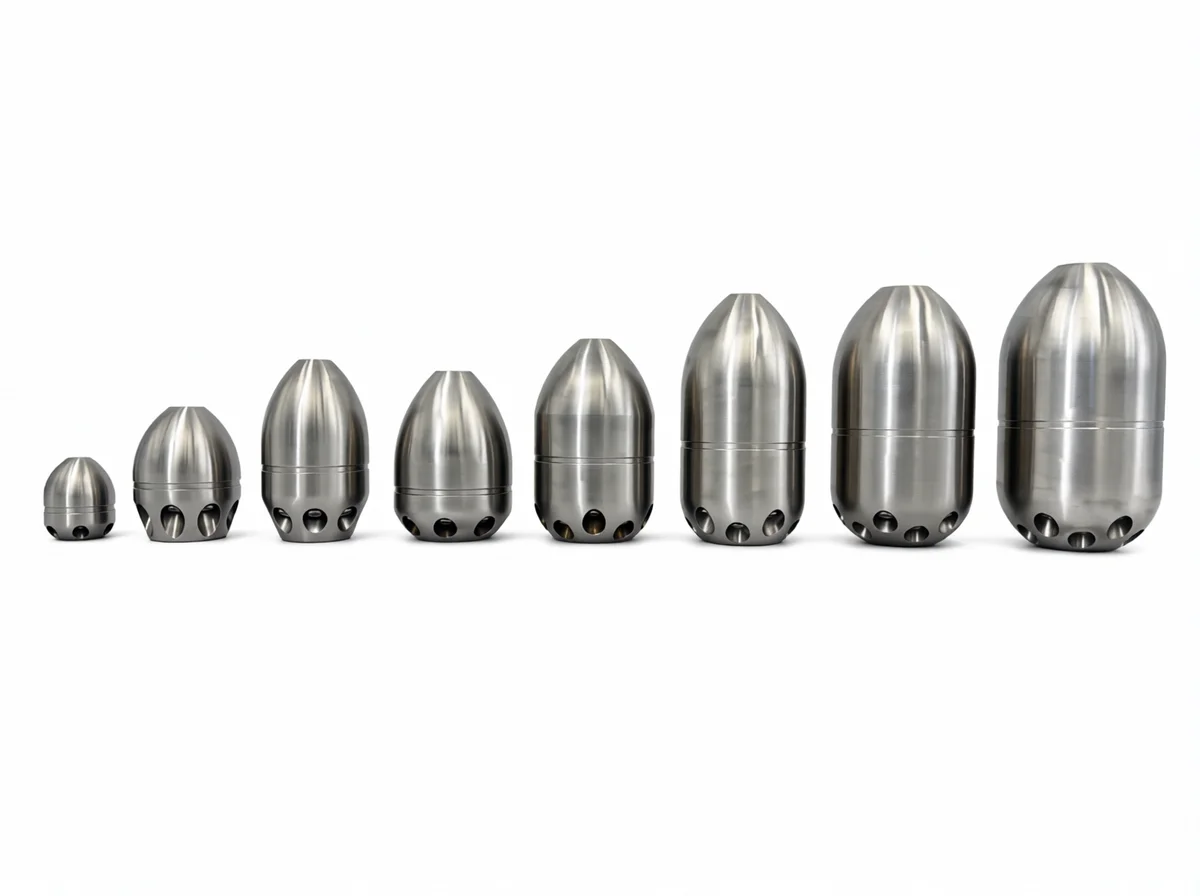

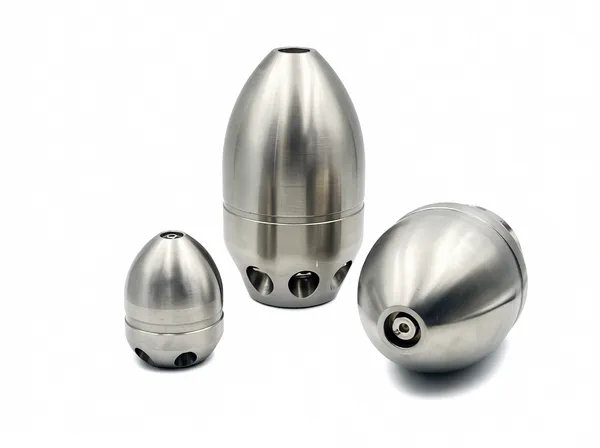

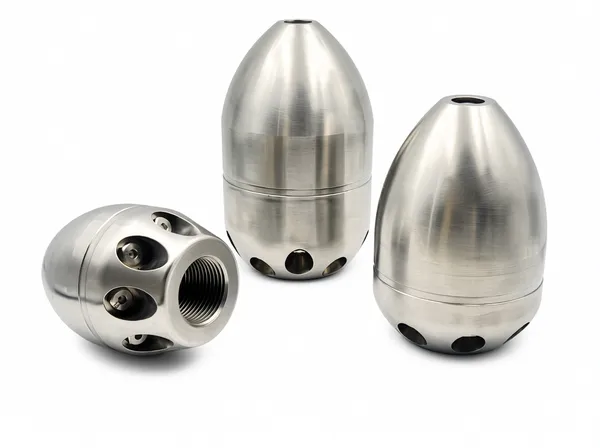

Product Gallery
About This Product
Torpedo Nozzle
The nozzle is made of wear-resistant hardened stainless steel, with a front ceramic insert and a plug (interchangeable). All ceramic inserts are replaceable, which extend nozzle's service life several times than drilled nozzles.
Application: Removing and breaking up stubborn blockages in pipelines, as well as cleaning other kinds of obstructions,e.g.limestone deposits, sand, gravel, sludge, grease, mud.
Interface Thread: NPT or BSPP
Max Pressure: 300Bar. Different flows and pressures are available on request.
