Sewer Nozzles

WuKong Nozzle

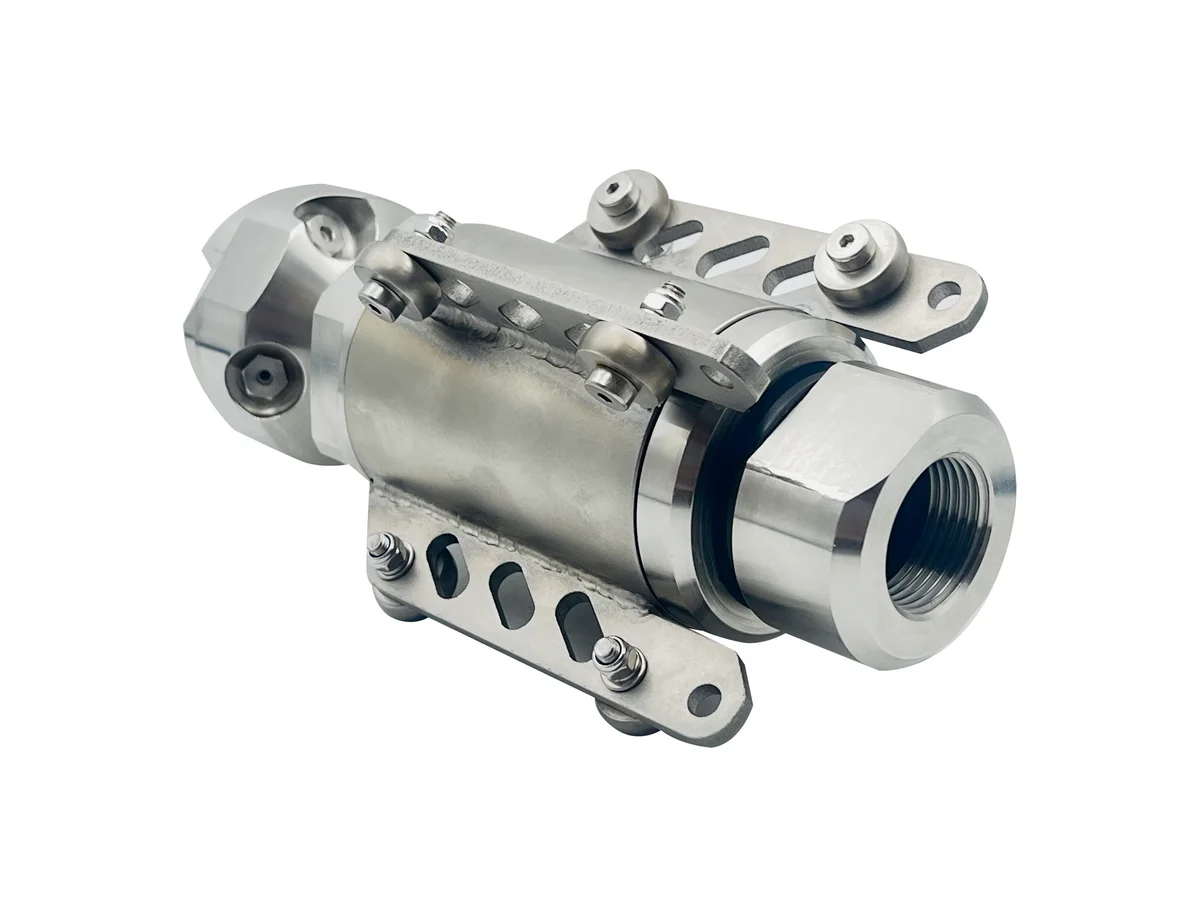

WuKong Nozzle is a high-performance heavy-duty high-pressure sewer cleaning nozzle made of wear-resistant hardened stainless steel, adopting 10° forward penetrating jets to break stubborn hard and semi-hard pipeline deposits, grease and roots.

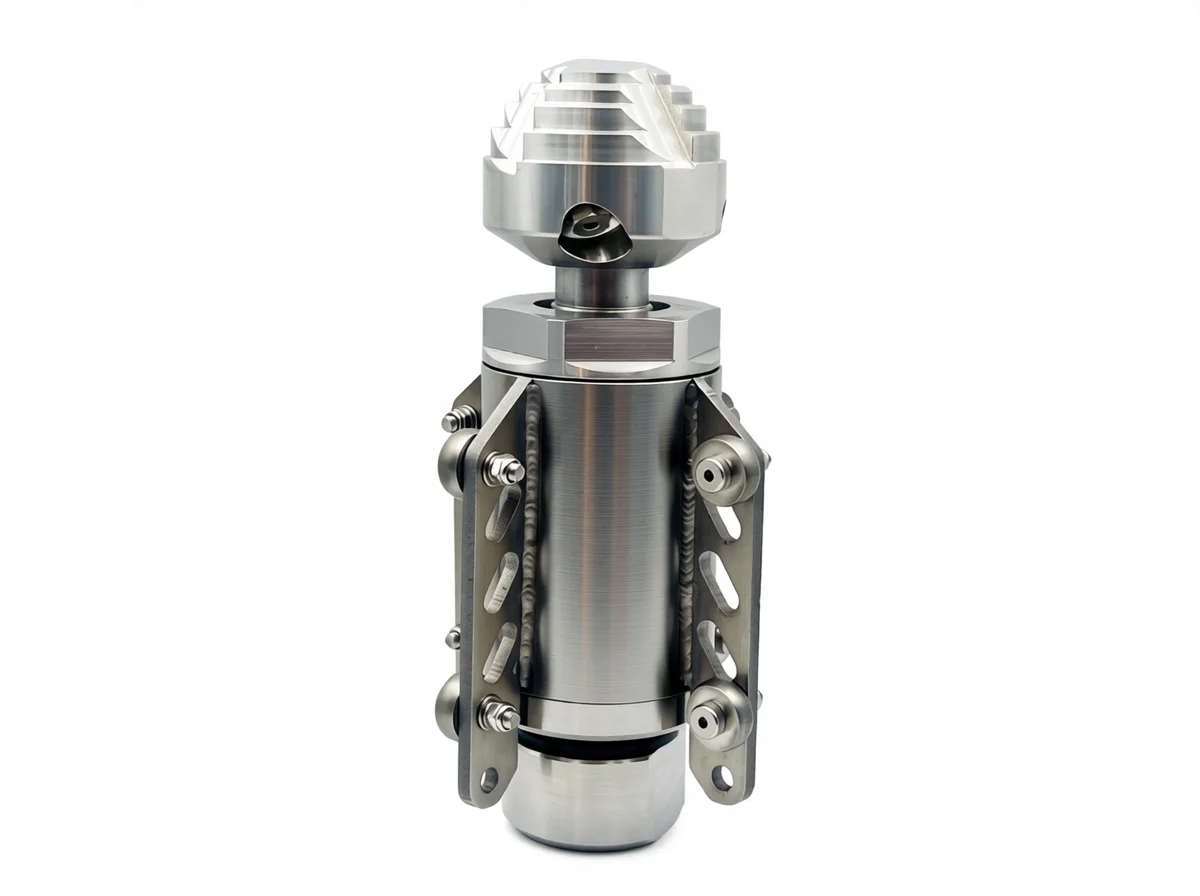

WuKong industrial spray nozzle for high pressure cleaning featuring durable stainless steel construction optimized flow

Product Variants & Specifications

Specific flow and pressure can be adjusted according to actual requirements

WuKong Nozzle WK4.9 Specifications

WK4.9 Specifications

Working DN (mm)200-600
Pressure(Bar)137
Flow(LPM)227
Hose Connection (Inch)1"
Front Jets1 x M10x1 - 10°
Rotating Jets4 x M10x1 - 15°+35°
Dimension(mm)120 x 224
Weight(KG）4.9

Product Gallery

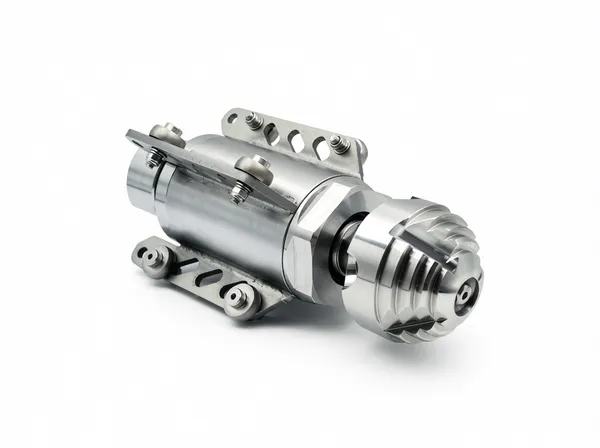

Side view of WuKong industrial nozzle showing connection interface and handle design for secure pump installation

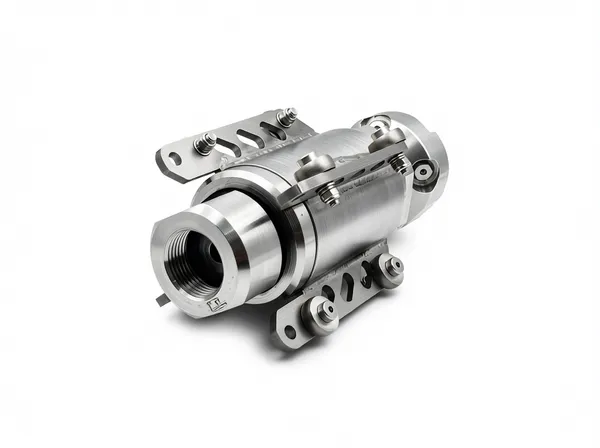

Top view of WuKong nozzle displaying inlet ports and adjustable flow control mechanisms for precise fluid delivery

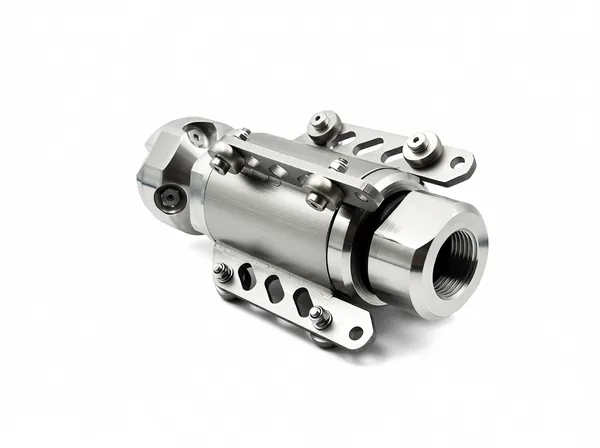

Close up detail of WuKong nozzle spray orifice designed for consistent atomization in industrial washing applications

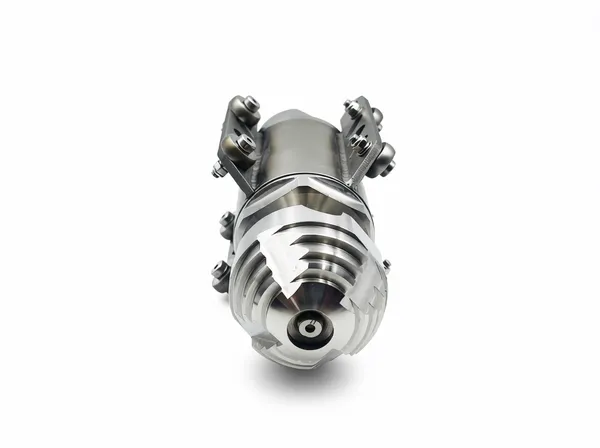

Front view of WuKong nozzle highlighting corrosion resistant material for harsh environments and heavy duty use

About This Product

Constructed from wear-resistant hardened stainless steel, the WuKong Nozzle features 10° forward jetting angle and front penetrating jets to deliver exceptional performance for pipeline blockage clearing. It comes with replaceable ceramic inserts, greatly extending service life compared with conventional drilled nozzles. It supports NPT or BSPP thread connection, maximum working pressure up to 350Bar, custom flow and pressure specifications can be provided upon request.

Interested in WuKong Nozzle?

Contact our team for more information, technical specifications, and pricing
